USWF Replacement for QS-330 Quartz Sleeve | Fits the VIQUA S2Q-PA, VT4, SC-4, & SSM-17 UV Series UV Systems

verified_user Warranty Info

Warranty Guarantee: One (1) Year Limited Warranty

USWF

USWF-350074

USWF Replacement for QS-330 Quartz Sleeve | Fits the VIQUA S2Q-PA, VT4, SC-4, & SSM-17 UV Series UV Systems

.price-ui--loading { display: block !important; opacity: 1 !important; }

$21.88

Affordably priced replacement for the VIQUA QS-330 quartz sleeve.

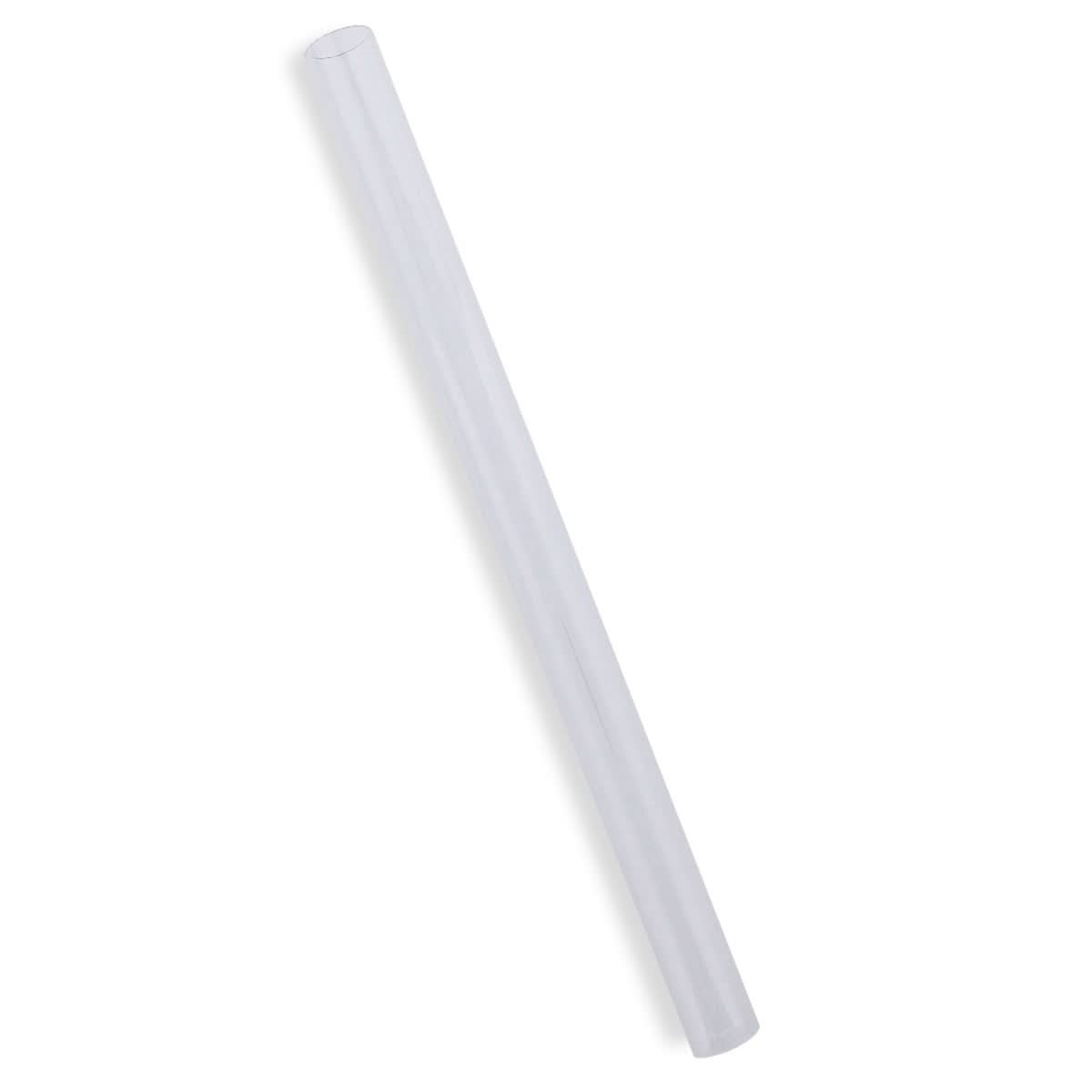

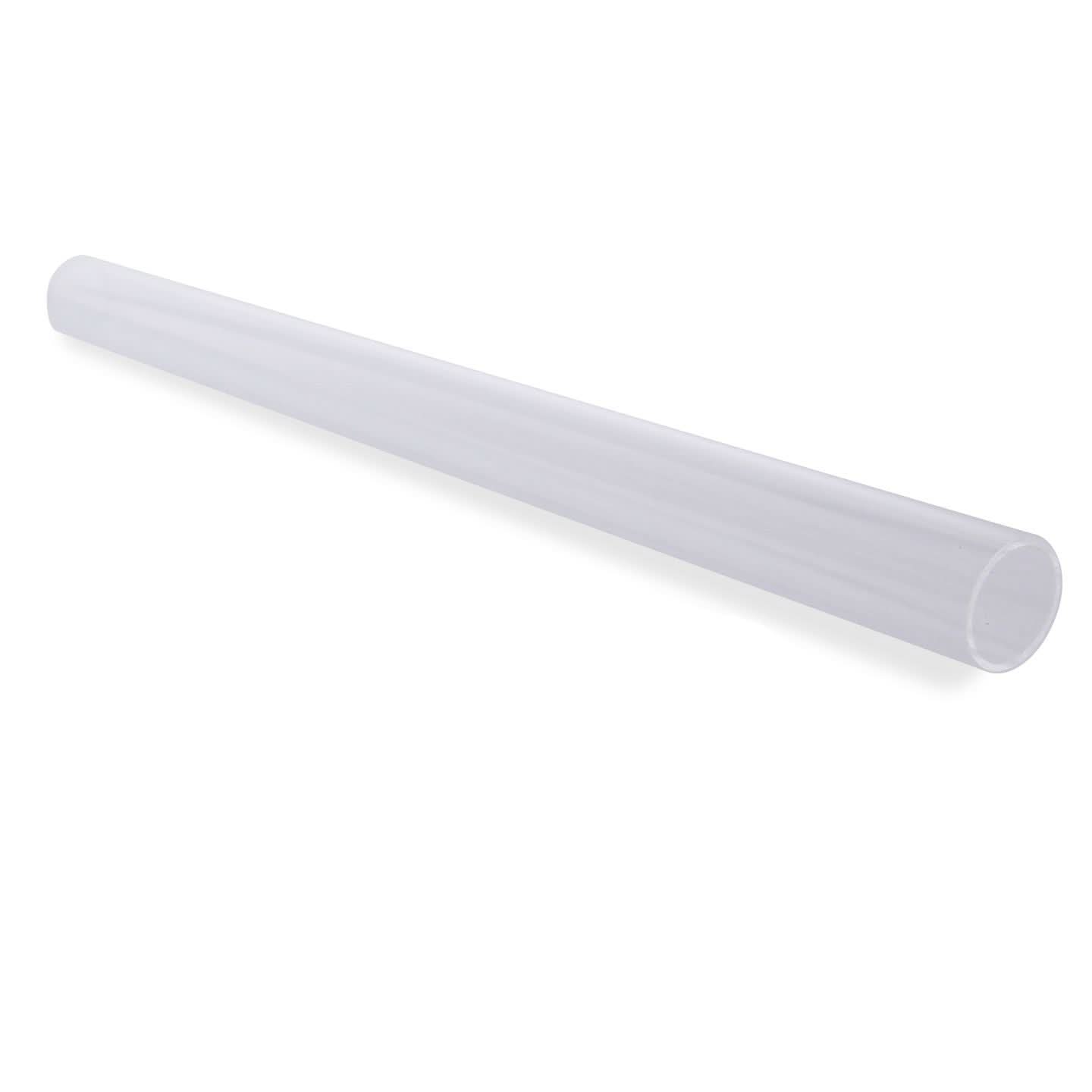

Replacement Quartz sleeve for the UV lamp in the VIQUA S2Q-PA, VT4, SC-4, & SSM-17 UV series of ultraviolet water treatment systems.
Quartz sleeves can be cleaned and reused, but if your quartz sleeve, cracks, breaks, or the becomes permanently cloudy and can not be cleaned it needs to be replaced
US Water Filter replacement quartz sleeves are manufactured in the USA to provide the highest level of performance and peace of mind.

format_list_bulleted Features & Specs

Package Qty: 1

Manufacturer: USWF

Manufacturer's Id: USWF-350074

Actual Size (in): 14.75 in (Length) x 0.9 in (Outside Diameter) x 0.79 in (Inside Diameter)

Warranty Guarantee: One (1) Year Limited Warranty

Brand: USWF

Country of Origin: United States

Includes: UV Quartz Sleeve

verified_user Warranty Info

Warranty Guarantee: One (1) Year Limited Warranty

help Product Details

The quartz sleeve is an important part of the UV water treatment system. It protects the UV lamp from coming in contact with the water while allowing the UV light to permeate the water. Minerals from the water will build up on the sleeve over time causing the sleeve to become cloudy not allowing the UV light to permeate the water as effectively. How quickly the minerals build up on the sleeve will vary depending on your water hardness, and if you have hardness of over 7 gpg you should install a water softener to treat the water before your UV system. Once the mineral layer on the quartz sleeve cannot be removed via cleaning, or the sleeve cracks or breaks it's time to get a replacement. US Water Filters USWF-350074 is a replacement for QS-330, for use in the VIQUA VT4, VTV/2, S2Q-PA, S2Q-PA/2 systems and the discontinued S2Q, S2Q/2, S2Q-GOLD, S2Q-GOLD/2, SSM-17, SSM-17/2 UV Systems.

How Does UV Disinfection Work?

Ultraviolet light water treatment systems utilize special UV lamps that emit UV light at a wavelength that damages microorganisms cellular function neutralizing the microorganisms DNA and their ability to function and reproduce. Because the microorganisms cannot replicate they cannot infect other organisms they come in contact with. This disinfects the water without the need for chemicals which need to be precisely administered and carefully monitored. Once installed the UV lamp runs 24/7 constantly disinfecting the water that travels through it and only requires minimal annual maintenance to keep running.

Because UV light only travels in a straight line any shadow or obstruction will reduce its efficiency. This means it is important to filter your water before UV treatment to make sure suspended particles like silt and sand are removed. Hardness minerals can also build up on the quartz sleeve which may require cleaning during lamp changes, however if the incoming water is hard enough a water softener is also recommended for pretreatment to reduce this buildup.

Naturally sourced water should be professionally tested and treated before it is used for drinking, bathing, filling swimming and paddling pools, food preparation or cooking. A number of water treatment systems can be used to remove microbiological contaminants that may cause illness. Ultraviolet light disinfection is an effective, reliable, environmentally friendly and chemical free water treatment system that can be used to disinfect water from most forms of microbiological contamination.

USWF Replacement for QS-330 Quartz Sleeve | Fits the VIQUA S2Q-PA, VT4, SC-4, & SSM-17 UV Series UV Systems

How Does UV Disinfection Work?

USWF-350074 is comparable with the following part number(s)

USWF-350074 fits the following model number(s)
