    USWF

    USWF-RQ330

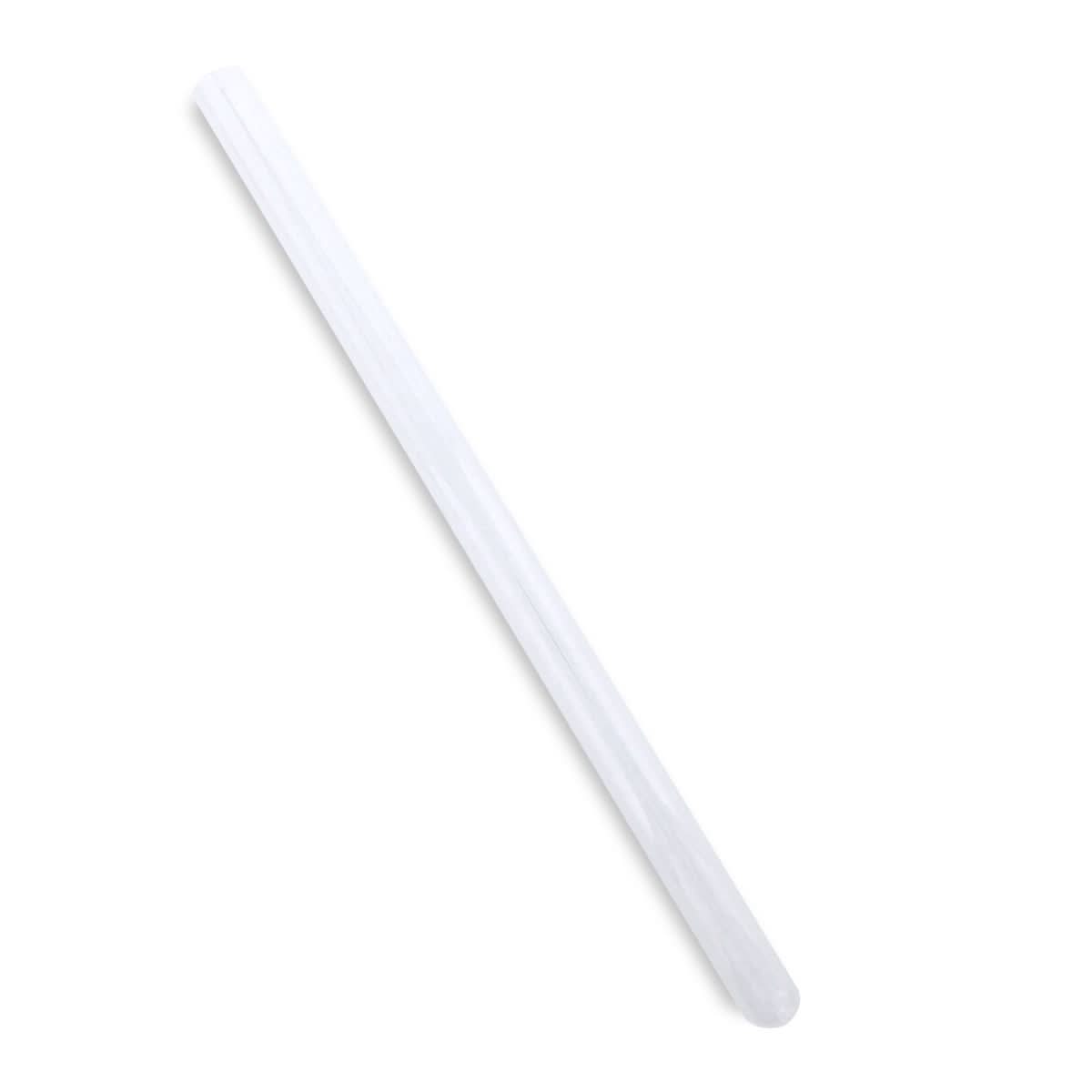

    USWF RQ330 Replacement Quartz Sleeve| Fits US Water Filters 4C101 Whole House UV System

    • Affordably priced replacement USWF RQ330 quartz sleeve

    • REPLACEMENT Quartz sleeve for the UV lamp in the USWF 4C101 ultraviolet water treatment system

    • Quartz sleeves can be cleaned and reused, but if your quartz sleeve, cracks, breaks, or the becomes permanently cloudy and can not be cleaned it needs to be replaced

    • US Water Filter replacement quartz sleeves are manufactured in the USA to provide the highest level of performance and peace of mind.

    format_list_bulleted Features & Specs
    Package Qty: 1
    Manufacturer: USWF
    Manufacturer's Id: USWF-RQ330
    Actual Size (in): 14.8 inch (Length) x 0.79 inch (Inside Diameter) x 0.89 inch (Outside Diamater)
    Warranty Guarantee: One (1) year Limited Warranty
    Brand: USWF

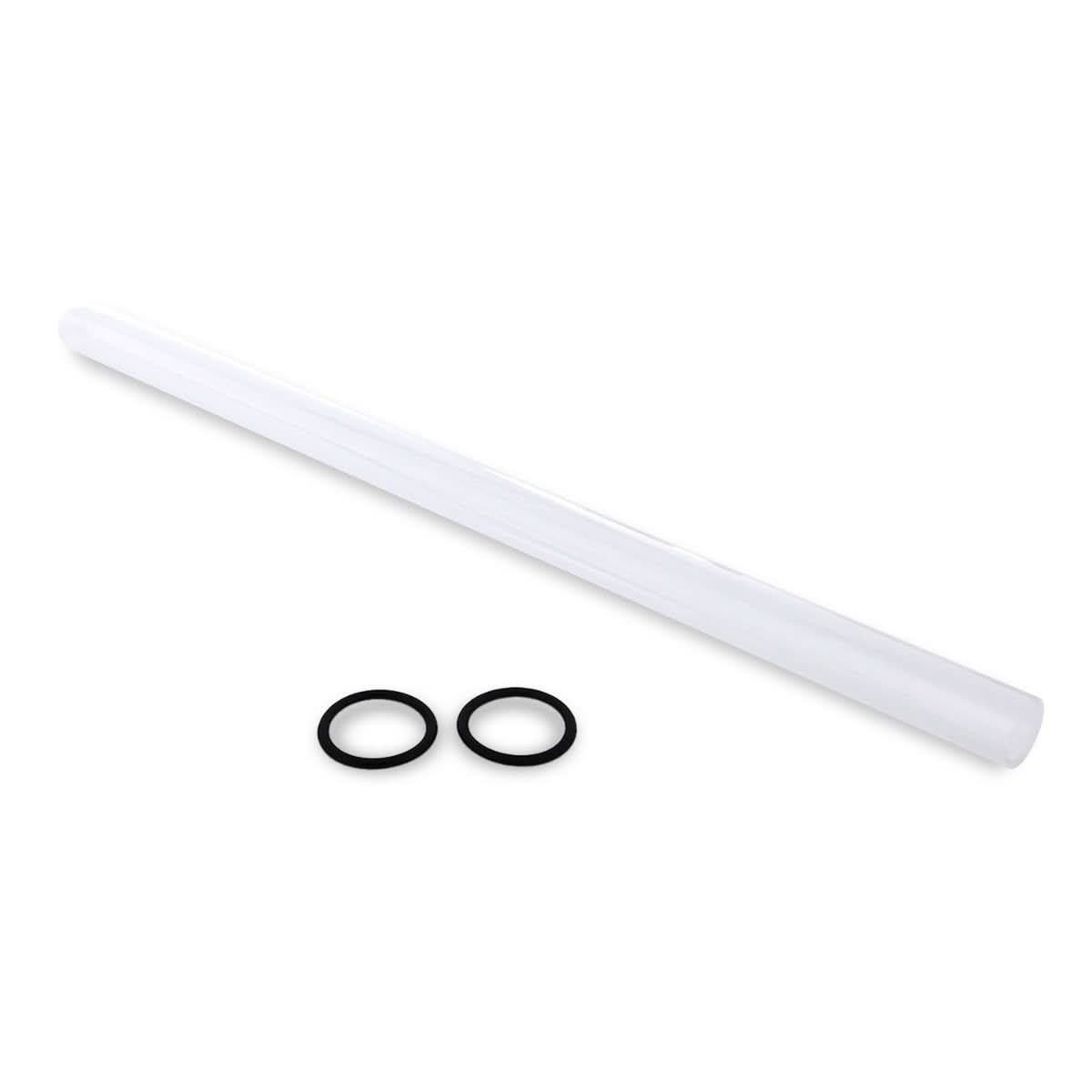

    Includes: Quartz Sleeve, 2 O-rings
    verified_user Warranty Info
    Warranty Guarantee: One (1) year Limited Warranty

    The quartz sleeve is an important part of the UV water treatment system. It protects the UV lamp from coming in contact with the water while allowing the UV light to permeate the water. Minerals from the water will build up on the sleeve over time causing the sleeve to become cloudy not allowing the UV light to permeate the water as effectively. How quickly the minerals build up on the sleeve will vary depending on your water hardness, and if you have hardness of over 7 gpg you should install a water softener to treat the water before your UV system. Once the mineral layer on the quartz sleeve cannot be removed via cleaning, or the sleeve cracks or breaks it's time to get a replacement. USWF-RQ330 is a replacement sleeve for the USWF 4C101 UV system. All quartz sleeves come with 2 replacement o-rings


    How Does UV Disinfection Work?

    Ultraviolet light water treatment systems utilize special UV lamps that emit UV light at a wavelength that damages microorganisms cellular function neutralizing the microorganisms DNA and their ability to function and reproduce. Because the microorganisms cannot replicate they cannot infect other organisms they come in contact with. This disinfects the water without the need for chemicals which need to be precisely administered and carefully monitored. Once installed the UV lamp runs 24/7 constantly disinfecting the water that travels through it and only requires minimal annual maintenance to keep running.

    Because UV light only travels in a straight line any shadow or obstruction will reduce its efficiency. This means it is important to filter your water before UV treatment to make sure suspended particles like silt and sand are removed. Hardness minerals can also build up on the quartz sleeve which may require cleaning during lamp changes, however if the incoming water is hard enough a water softener is also recommended for pretreatment to reduce this buildup.

    Naturally sourced water should be professionally tested and treated before it is used for drinking, bathing, filling swimming and paddling pools, food preparation or cooking. A number of water treatment systems can be used to remove microbiological contaminants that may cause illness. Ultraviolet light disinfection is an effective, reliable, environmentally friendly and chemical free water treatment system that can be used to disinfect water from most forms of microbiological contamination.

    USWF-RQ330   is comparable with the following part number(s)

    • RQ-330
    • LBH4-101
    • LBH4-101-50
    • LBH5-101
    • LBH5-101B
    • LBH6-101
    • LBH6-101A
    • LBH6-101B
    • RQ-330-UV
    • UV-10DH
    • UVQTZ-10H
    • WRX-45
    • GEN H5-10
    • GEN H6-10
    • 40040041

    USWF-RQ330   fits the following model number(s)

    • USWF-4C101
    • 4C101
    • LBH4-101
    • LBH5-101
    • LBH5-101B
    • LBH6-101
    • LBH6-101A
    • LBH6-101B
