Tier1 10 inch x 2.5 inch Pleated Sediment Water Filter (30 Micron) - WaterFilters.NET

verified_user Warranty Info

Warranty Guarantee: Unconditional Guarantee for Life of the Product

Tier1

TIER1-SPC-25-1030

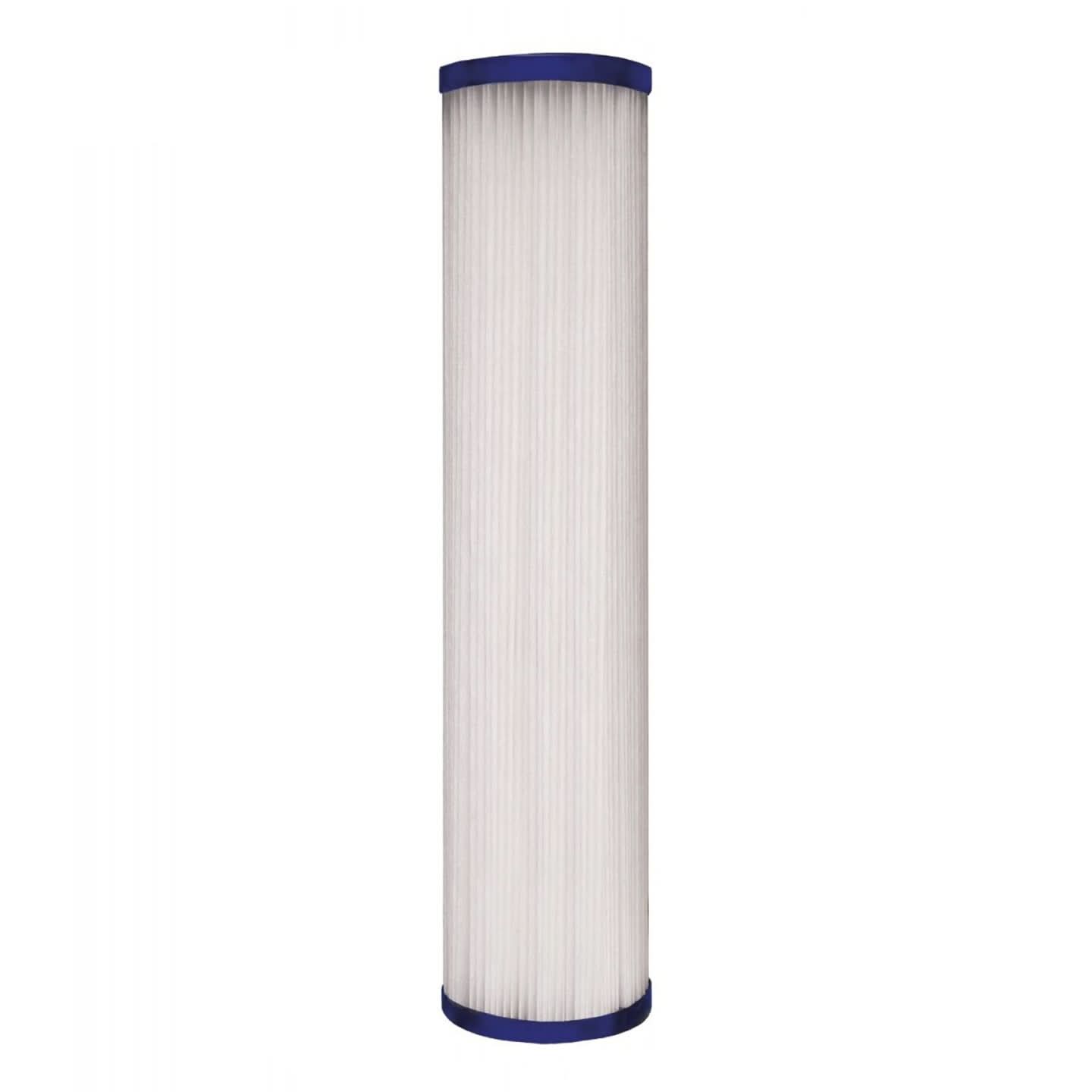

Tier1 10 inch x 2.5 inch Pleated Sediment Water Filter (30 Micron)

Name: Tier1 10 inch x 2.5 inch Pleated Sediment Water Filter (30 Micron)
Brand: Tier1
SKU: TIER1-SPC-25-1030
Price: 6.32 USD
Availability: InStock

.price-ui--loading { display: block !important; opacity: 1 !important; }

$6.32

Fits standard 10 x 2.5 inch water filter housings

Ships fast
Holds more dirt than other filters
Washable and reusable filter
Can be used in a variety of applications such as commercial, residential, and industrial

format_list_bulleted Features & Specs

Package Qty: 1

Manufacturer: Tier1

Manufacturer's Id: SPC-25-1030

UPC: 810004477513

Actual Size (in): 9 7/8 inches (length) x 2 1/2 inches (outside diameter)

Media: Non-Woven Pleated Polyester

Primary Filter Media: Pleated Polyester

Operating Temperature (°F): 40 - 125

Operating Temperature (°C): 4.4 - 51.7

Warranty Guarantee: Unconditional Guarantee for Life of the Product

Brand: Tier1

Advertised Size: 10 x 2-1/2

Length (in): 9.88 in

Outside Diameter (in): 2.5 in

Materials of Construction: Core: Polypropylene, End Caps: Vinyl Plastisol

Media Type: Sediment Filter

Micron Rating Nominal: 30

Flow Rate (gpm): 10.0

description Instructions

Turn off water supply. Press red pressure-relief button (if present)
Unscrew housing. Remove large o-ring, wipe clean and set aside
Discard used filter cartridge
Wash housing with dish soap and warm water using a nonabrasive sponge or cloth. Rinse thoroughly
Fill 1/3 with water. Add about 1 tablespoon of bleach and scrub to disinfect. Rinse thoroughly
Lubricate o-ring with clean silicone grease. Change o-ring if any damage cuts or degradation are present. Insert o-ring in groove
NOTE: This step is important to ensure a proper housing seal. Make certain the o-ring is seated level in the groove
Insert new filter cartridge
Screw housing onto the cap and hand-tighten. Do not over tighten. Make sure cap standpipe slips into cartridge
Turn on water supply. Press pressure-relief button (if present). Check for leaks before leaving installation

warning_amber Contaminants Reduced

Dirt Sand Sediment

Particulates

Sand

Sediment

Silt

filter_alt Filter Life

Filter Life (months): 6 months

verified_user Warranty Info

Warranty Guarantee: Unconditional Guarantee for Life of the Product

compare_arrows

Check Our Comparable Products

help Product Details

The Tier1 10 inch x 2.5 inch pleated sediment water filter (30 Micron) offers a pleated design that captures more dirt, and particles keeping your water clean and drinkable. Designed for applications such as residential, commercial and industrial environments this filter is resistant to bacteria and chemicals while also reducing different kinds of sediment. You can even wash and re-use this filter for better use. Be sure to order today!

extension Comparable Part Number

	Tier1 10 inch x 2.5 inch Pleated Sediment Water Filter (30 Micron) View details	American Plumber W30PE Pleated Polyester Water Filters View details	Pentek R30 Pleated Polyester Water Filters (9-3/4-inch x 2-5/8-inch) View details
Product Price	$6.32	$29.63	$12.59
Product SKU	TIER1-SPC-25-1030	AMERICAN-PLUMBER-W30PE	PENTEK-R30
Filter Life (months)	6 months	4 months	6 months
Primary Filter Media	Pleated Polyester	Pleated Polyester	Pleated Polyester
Micron Rating (Nominal)	30	30	30
Actual Size (in)	9 7/8 inches (length) x 2 1/2 inches (outside diameter)	9 3/4 inches (length) x 2 inches (outside diameter)	9 3/4 inches (length) x 2 5/8 inches (outside diameter)
Country of Manufacture	—	Mexico	Mexico

Tier1 10 inch x 2.5 inch Pleated Sediment Water Filter (30 Micron)

TIER1-SPC-25-1030 is comparable with the following part number(s)
