    PENTEK-RFC20-BB

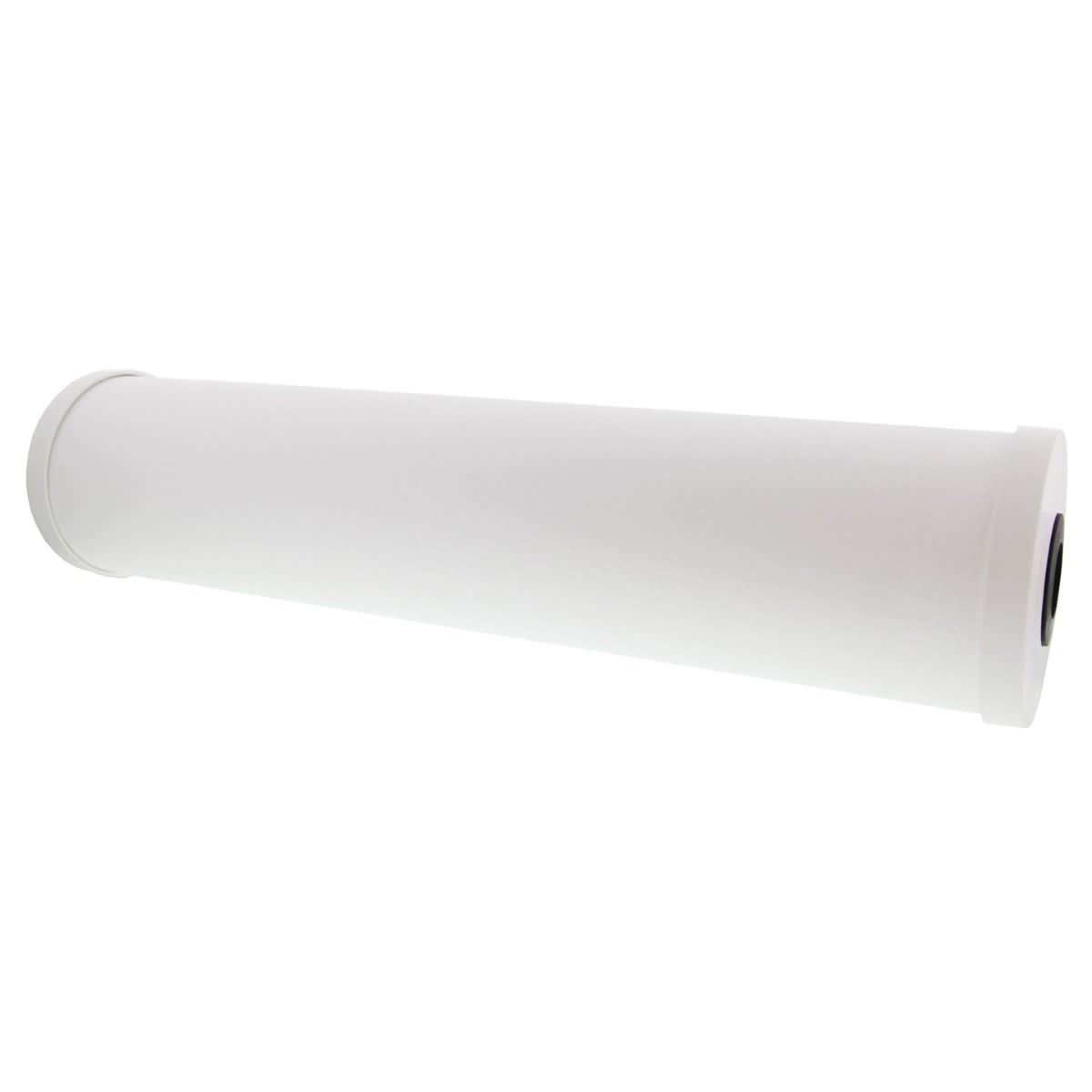

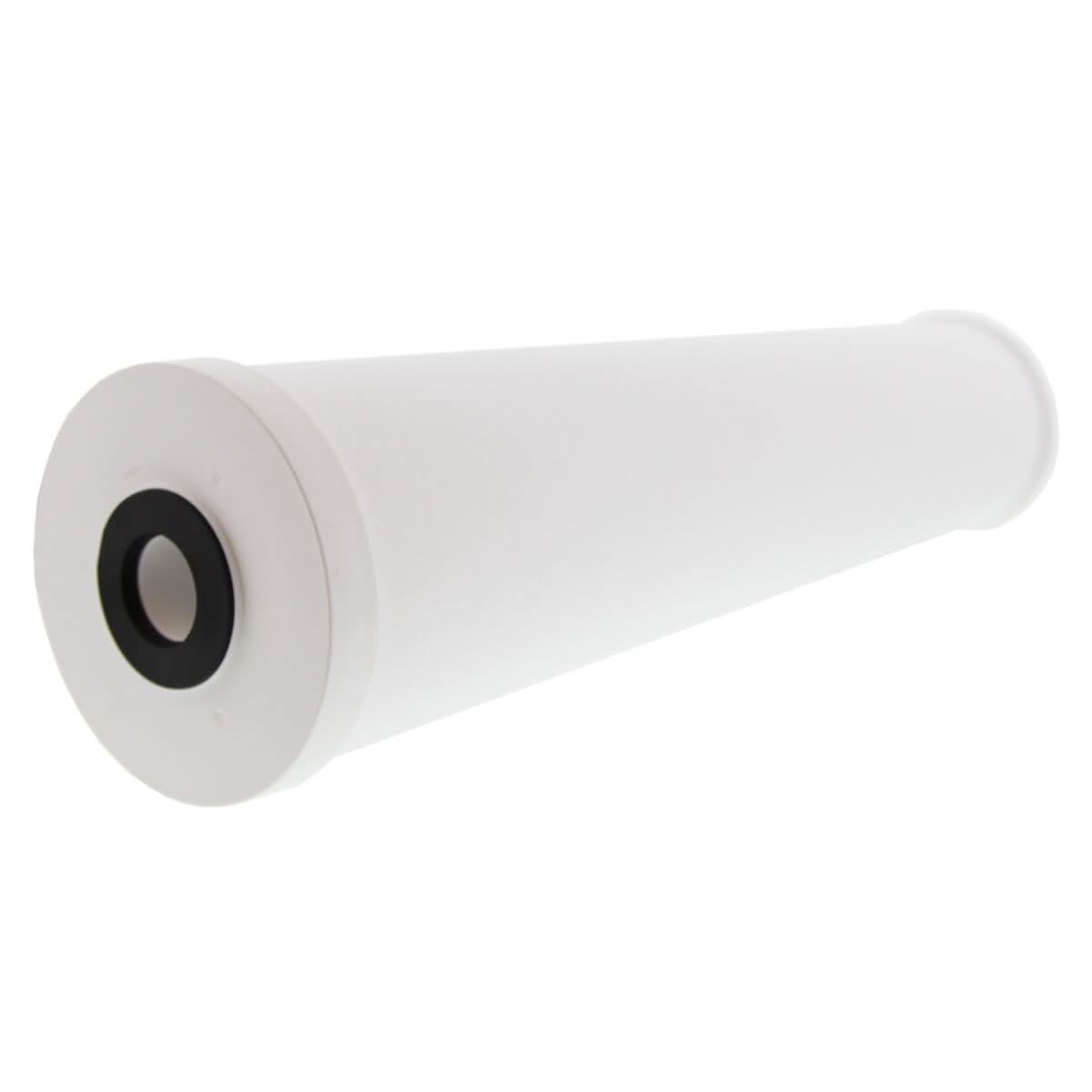

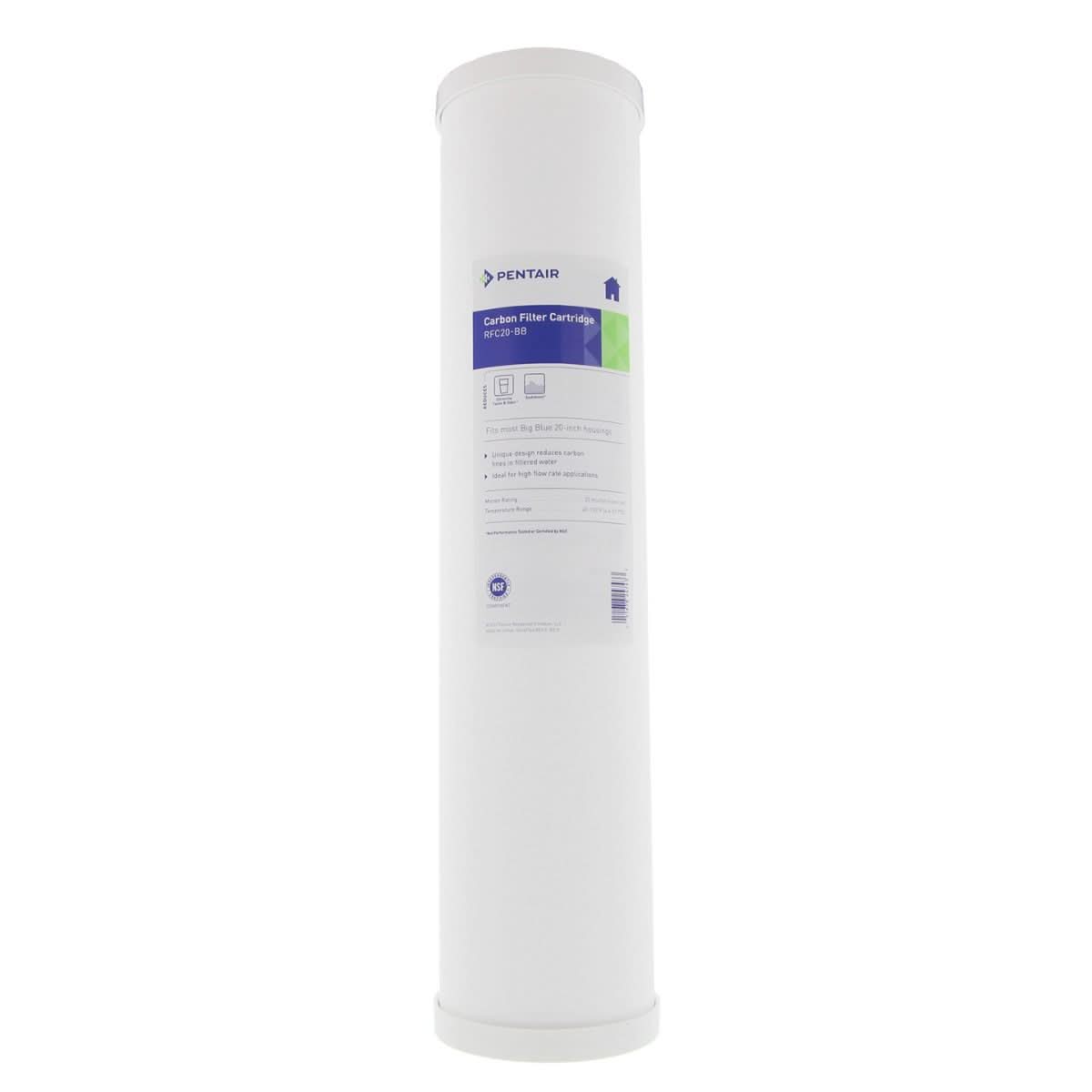

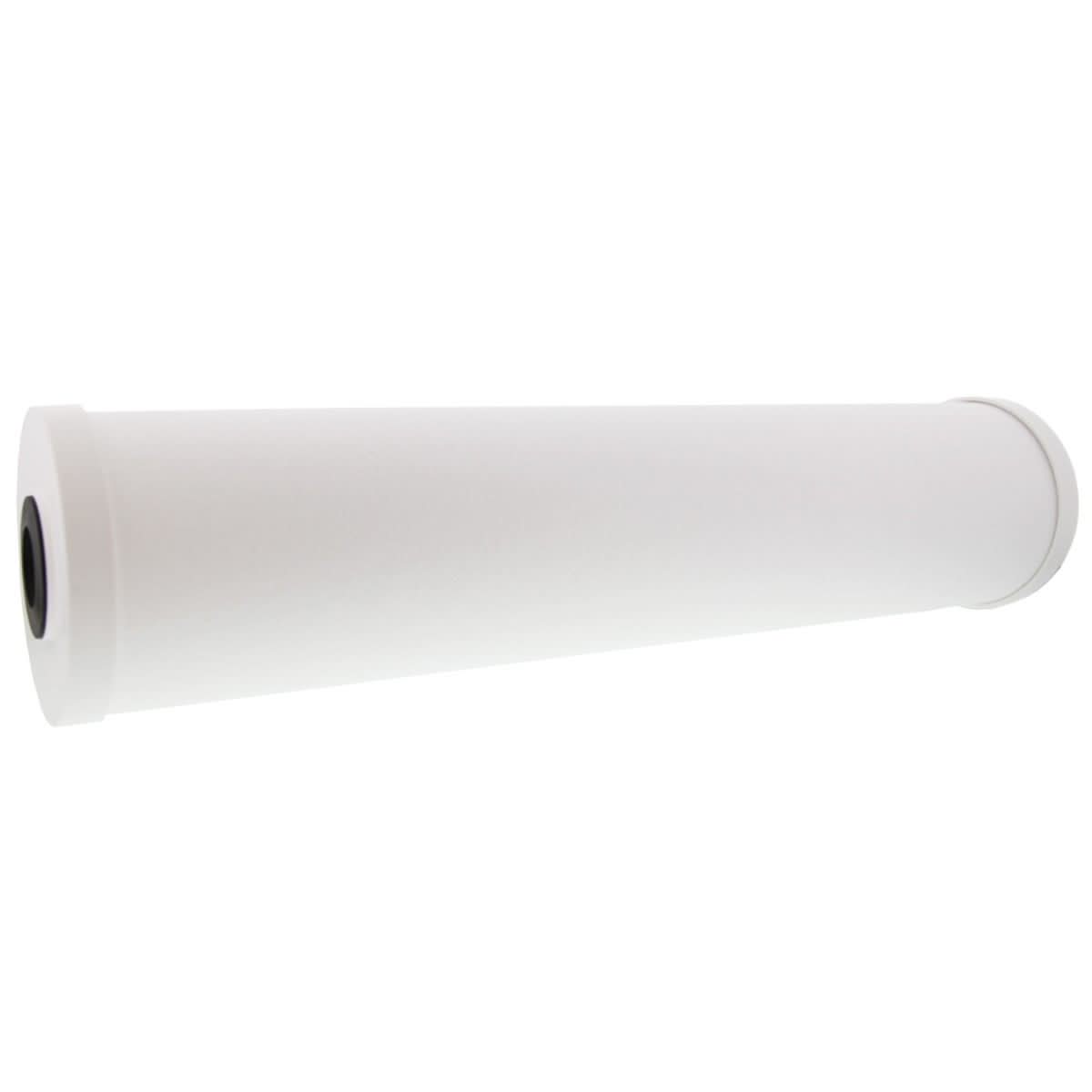

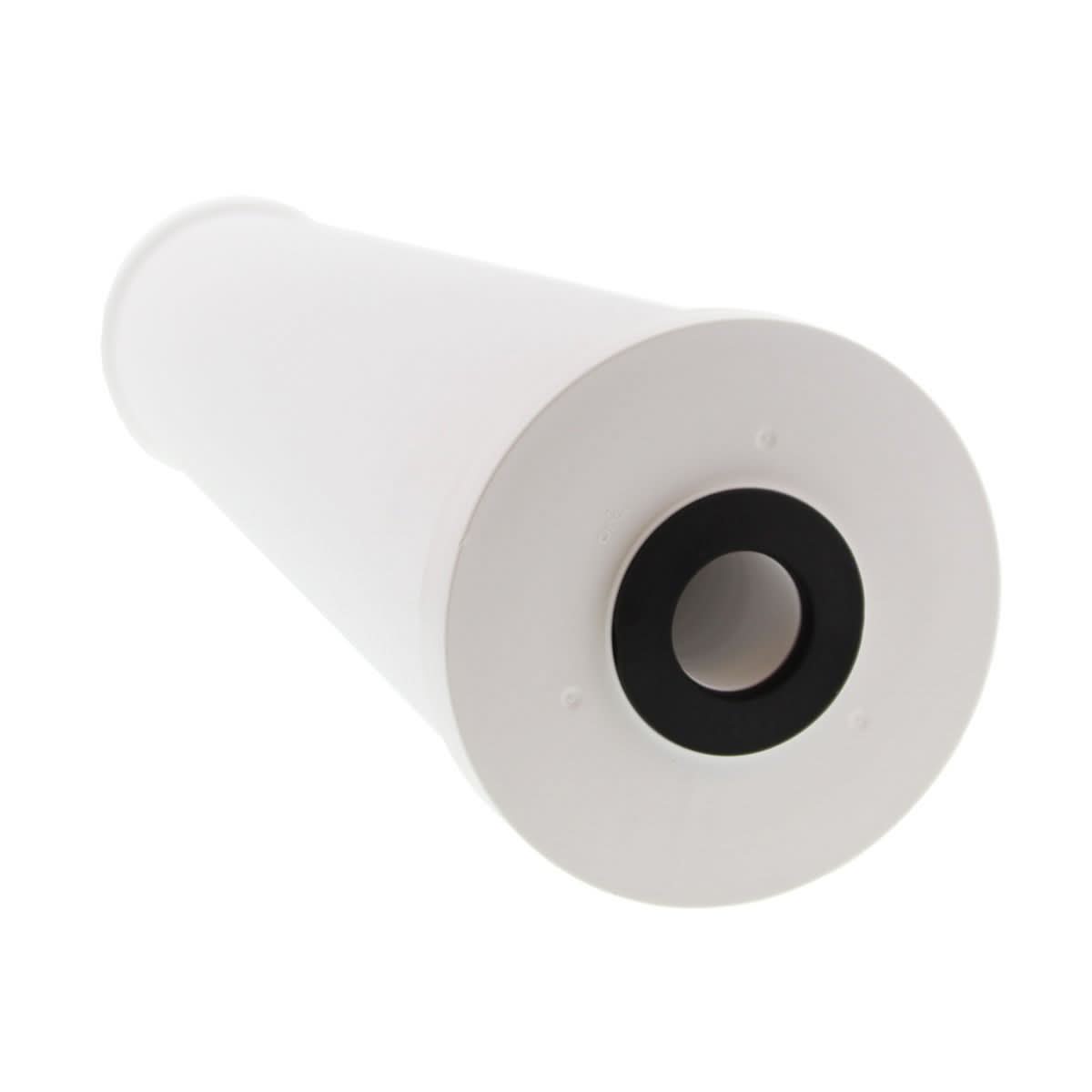

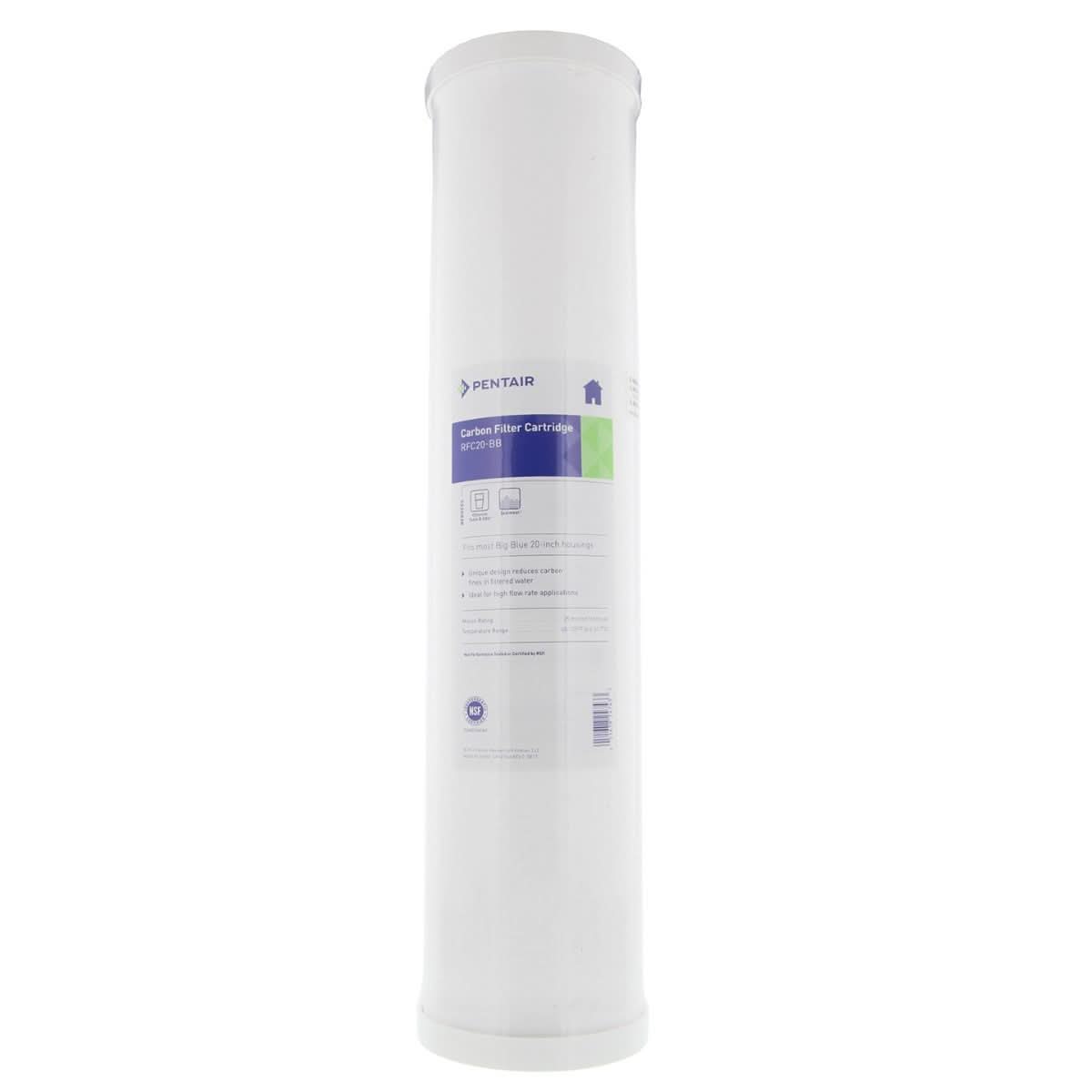

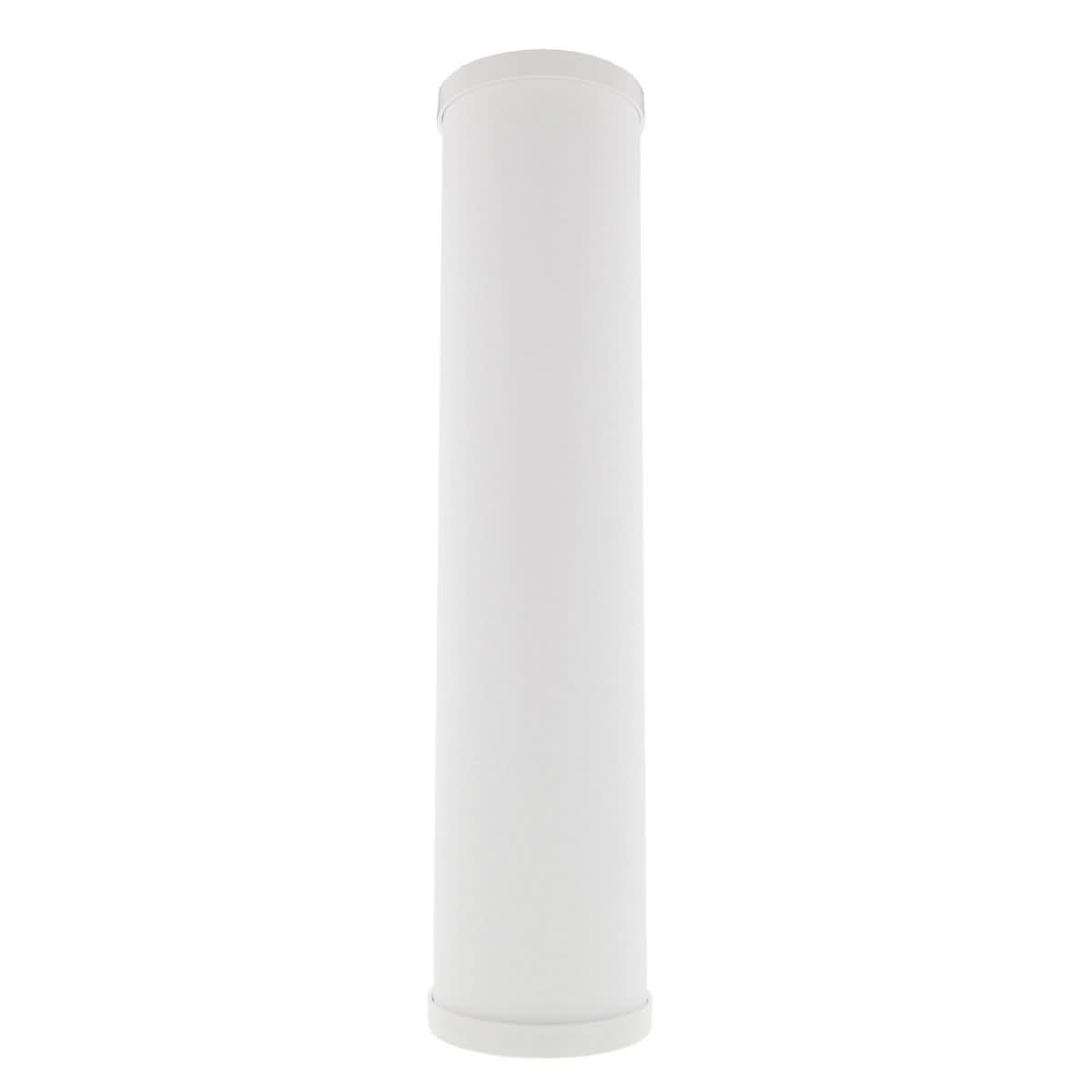

    Pentek RFC-20BB Radial Flow Water Filters (20-inch x 4.5-inch)

    Fits most stand housings built for 20-inch x 4.5-inch filter cartridges
    • Provides chlorine taste and odor reduction for better tasting water in every glass

    • Nominal 25 micron radial flow carbon water filter cartridge

    • The Pentek RFC-20BB filter cartridge has a unique design that reduces carbon fines in filtered water

    • Polypropylene core and end caps inhibit the growth of bacteria on the filter

    format_list_bulleted Features & Specs
    Package Qty: 1
    Manufacturer: Pentair Water
    Manufacturer's Id: RFC20-BB
    UPC: 051678247433
    Actual Size (in): 20 inches (Length) x 4-1/2 inches (Outside Diameter)
    Media: porous polyethylene
    Primary Filter Media: Granular Activated Carbon
    Operating Temperature (°F): 40 - 125
    Operating Temperature (°C): 4.4 - 51.7
    Brand: Pentek
    Advertised Size: 20 x 4-1/2
    Length (in): 20 in
    Outside Diameter (in): 4.5 in
    Width (in): 4.5 in
    Materials of Construction: Inner Wraps/Core: Polypropylene, End Caps: Polypropylene, Gasket: Buna-N, Outer Shell: Polyethylene
    Media Type: Carbon Filter
    Country of Origin: China
    Micron Rating Nominal: 25
    Flow Rate (gpm): 4.0
    Includes: One 25 Micron RFC20-BB Prentek Carbon Filter Cartridge
    description Instructions
    1. Turn off water supply. Press red pressure-relief button (if present).
    2. Unscrew housing. Remove large o-ring, wipe clean and set aside.
    3. Discard used filter cartridge. Wash housing with dish soap and warm water using a nonabrasive sponge or cloth. Rinse thoroughly.
    4. Fill 1/3 with water. Add about 1 tablespoon of bleach and scrub to disinfect. Rinse thoroughly.
    5. Lubricate o-ring with clean silicone grease. Change o-ring if any damage cuts or degradation are present. Insert o-ring in groove.
    6. NOTE: This step is important to ensure a proper housing seal. Make certain the o-ring is seated level in the groove.
    7. Insert new filter cartridge.
    8. Screw housing onto the cap and hand-tighten. Do not over tighten. Make sure cap standpipe slips into cartridge.
    9. Turn on water supply. Press pressure-relief button (if present). Check for leaks before leaving installation.
    file_download Downloads
    workspace_premium Certifications
  • NSF/ANSI Standard 42
  • warning_amber Contaminants Reduced
  • Chlorine
  • Sand
  • Sediment
  • Silt
  • filter_alt Filter Life
    Filter Life (gallons): 100000
    Filter Life (months): 6 months
    warning

    Prop65 warning applies to products that contain carbon media. Click here for more details

    WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information go to www.p65warnings.ca.gov




    Pentek RFC20-BB Use and Benefits


    Pentek RFC-20BB radial flow carbon water filters produce healthier, better-tasting drinking water. The Pentek RFC-20BB water filter provides effective chlorine taste & odor reduction. The Pentek RFC20-BB water filters are constructed with a 25 micron porous polyethylene outer shell and durable polypropylene end caps. The 4-1/2-inch outside diameter cartridge incorporates a spun polypropylene core. Sandwiched between the outer shell and the core is a bed of granular activated carbon (GAC). The unique radial flow design offers the benefits of granular activated carbon (GAC) filtration, such as low pressure drop, while at the same time significantly reducing the release of carbon fines commonly associated with GAC style cartridges.



    Point of Entry Application


    The Pentek RFC-20BB water filter cartridges are ideal for point-of-entry (POE) and other high flow rate applications. High flow rate allows this cartridge to meet the demanding needs of modern homes. With a long filter life this filter can deliver great tasting water to every faucet in your home for up to 100,000 gallons or 6 months. When a filter exchange is necessary simply remove it from the filter housing and replace the existing cartridge. No need to hassle with large whole house tank systems and additional plumbing.



    Carbon Filter Media


    Carbon media, whether as granular activated carbon or as a carbon block functions as a fantastic water filtration media due to its incredibly high porosity. This high porosity maximizes the surface area contaminants are exposed to and ensures that contaminants have a great chance of being captured and reduced from your drinking water. Carbon filters are known for being effective at reducing the unpleasant taste and odors associated with city water chlorine treatment. If you are looking for better tasting water with excellent contaminant reduction try out a carbon filter today!


    NOTE: The granular activated carbon cartridges will contain a very small amount of carbon fines (very fine black powder). After installation, a new cartridge should be flushed with sufficient water to remove all traces of the fines from your water system before use. Each time you use your filtered water for drinking or cooking purposes it is recommended that you run (flush) the tap for at least 20 seconds prior to using water. This is particularly important if the water tap has not been used daily.

    NOTE: Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system.


    PENTEK-RFC20-BB   is comparable with the following part number(s)

    • 155247
    • 175792
    • 155247-43
    • 56027-01
    • AP817
    • RFC20-BB
    • RFC-20BB
