    • Hydronix SDC-45-1010 Sediment Polypropylene Water Filter Cartridges

    HYDRONIX-SDC-45-1010

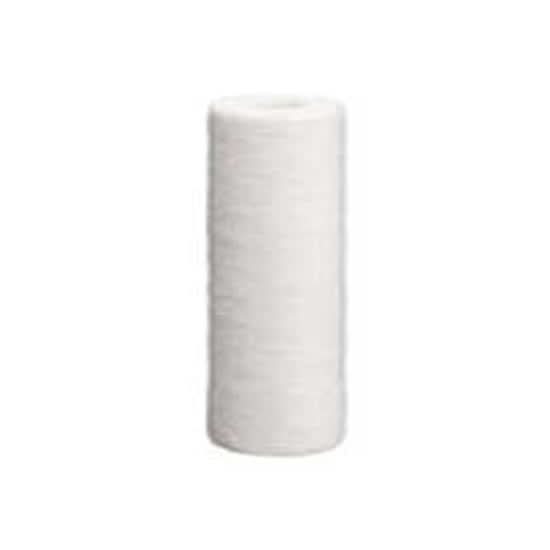

    Hydronix SDC-45-1010 Sediment Polypropylene Water Filter Cartridges

    Availability: Discontinued

    This item is no longer available.

    Recommended Replacement

    10 Micron Melt Blown Sediment Filter by USWF 10"x4.5"

    Price: $9.46 USD

    Learn More
    format_list_bulleted Features & Specs
    Package Qty: 1
    Manufacturer: Hydronix
    Manufacturer's Id: SDC-45-1010
    UPC: 799705708228
    Actual Size (in): 9 7/8 inches (length) x 4 1/2 inches (outside diameter)
    Media: Spun Wound Polypropylene
    Primary Filter Media: Polypropylene
    Operating Temperature (°F): 40 - 145
    Operating Temperature (°C): 4.4 - 62.8
    Brand: Hydronix
    Advertised Size: 10 x 4-1/2
    Length (in): 9.88 in
    Outside Diameter (in): 4.5 in
    Media Type: Sediment Filter
    Country of Origin: Thailand
    Micron Rating Nominal: 10
    Flow Rate (gpm): 10.0
    description Instructions
    1. Each time you replace your filter, clean and inspect the o-ring in between the housing cap and sump
    2. If there is any damage to the o-ring replace it
    3. After cleaning the o-ring apply a silicone lubricant, like OR-LUBRICANT-SM (purchasable separately)
    4. You must use a silicone food grade lubricant--all other types of lubricant could damage the o-ring
    5. Silicone lubricant prevents leaking and extends the life of the o-ring
    filter_alt Filter Life
    Filter Life (months): 3 months

    The Hydronix SDC-45-1010 Sediment Depth Cartridge is a 10 micron sediment filter. The Hydronix SDC-45-1010 Sediment Water Filter measures 9-7/8-inch x 4-1/2-inch. The Hydronix SDC-45-1010 Prefilter has graded density for higher dirt-holding capacity. Hydronix Water Technology SDC-45-1010 water filter cartridges are made of 100% pure polypropylene. Hydronix SDC Sediment Depth Cartridges are perfect prefilters for GAC filters, RO systems, DI Systems, ice machines, wineries, and many more.


    HYDRONIX-SDC-45-1010   is comparable with the following part number(s)

    • SDC-45-1010
    • SDF-45-1010
