    • 20 X 4.5 Pleated Polyester Replacement Filter by Tier1 (30 micron)
    R30-20BB Pentek Comparable Whole House Sediment Water Filter by Tier1 (Great Water Great Life)
    R30-20BB Pentek Comparable Whole House Sediment Water Filter by Tier1 (Why Tier1?)
    R30-20BB Pentek Comparable Whole House Sediment Water Filter by Tier1 (What We Filter)
    R30-20BB Pentek Comparable Whole House Sediment Water Filter by Tier1 (alternate)
    20 X 4.5 Pleated Polyester Replacement Filter by Tier1 (30 micron)
    R30-20BB Pentek Comparable Whole House Sediment Water Filter by Tier1 (Great Water Great Life)
    R30-20BB Pentek Comparable Whole House Sediment Water Filter by Tier1 (Why Tier1?)
    R30-20BB Pentek Comparable Whole House Sediment Water Filter by Tier1 (What We Filter)
    R30-20BB Pentek Comparable Whole House Sediment Water Filter by Tier1 (alternate)
    verified_user Warranty Info
    Warranty Guarantee: Unconditional Guarantee for Life of the Product
    Tier1

    TIER1-R30-20BB

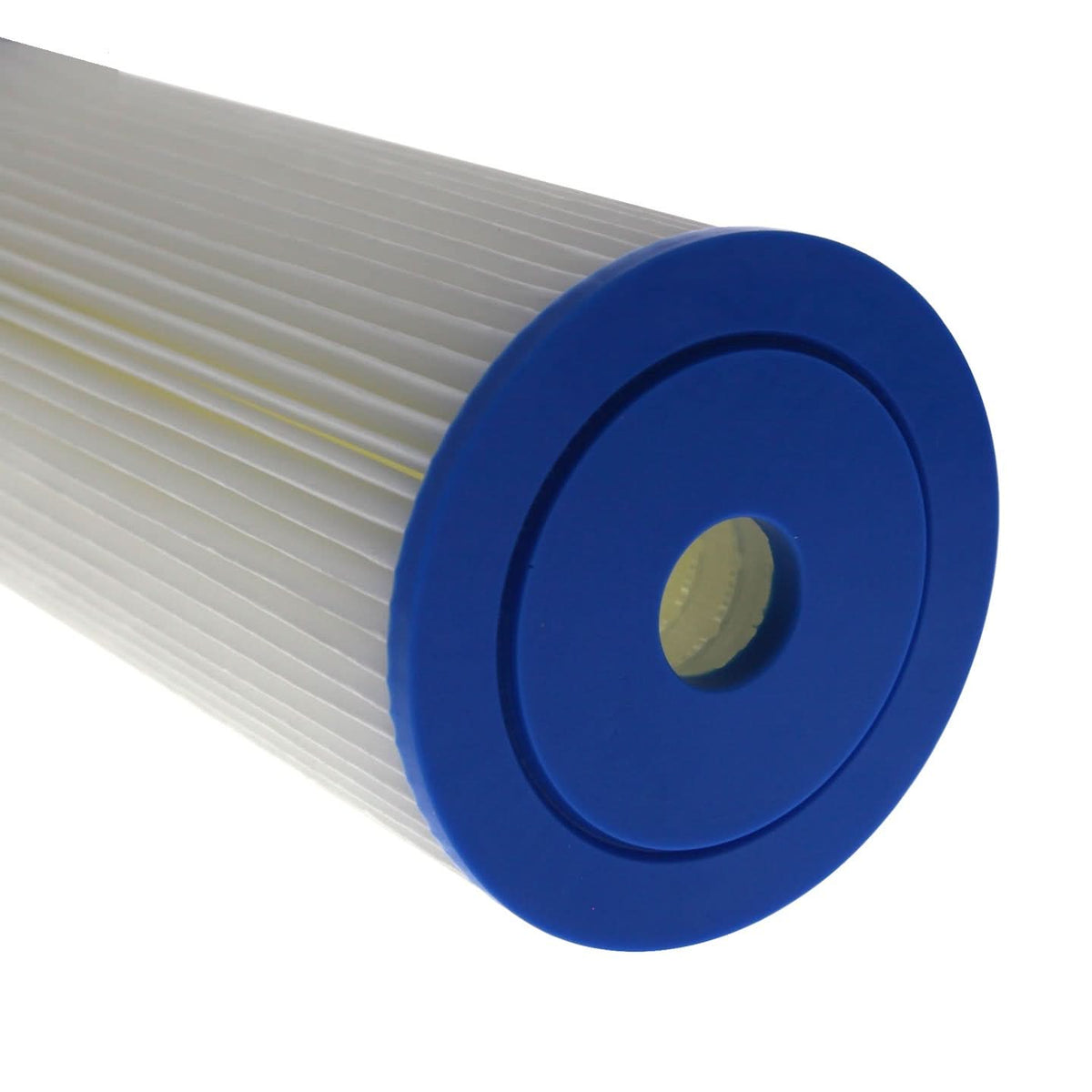

    20 X 4.5 Pleated Polyester Replacement Filter by Tier1 (30 micron)

    $25.09
    Fits water filter housings requiring 20 x 4.5-inch filters

    • Ships same day

    • Pleated Polyester filter media reduces particles down to 30 microns

    • Provides a better water use experience

    • Easy installation for a frustration-free return to better water

    format_list_bulleted Features & Specs
    Package Qty: 1
    Manufacturer: Tier1
    Manufacturer's Id: R30-20BB
    UPC: 635510447467
    Actual Size (in): 20 inches (length) x 4 1/2 inches (outside diameter)
    Primary Filter Media: Pleated Polyester
    Operating Temperature (°F): 40 - 125
    Operating Temperature (°C): 4.4 - 51.7
    Warranty Guarantee: Unconditional Guarantee for Life of the Product
    Brand: Tier1
    Advertised Size: 20 x 4-1/2
    Depth (in): 4.38 in
    Height (in): 6 in
    Length (in): 19.78 in
    Outside Diameter (in): 4.5 in
    Width (in): 4.38 in
    Media Type: Sediment Filter
    UPC's For Search: 700355940760 | 10051678101435 | 051678101438
    Country of Origin: China
    Micron Rating Nominal: 30
    Flow Rate (gpm): 20.0
    description Instructions
    1. Turn off water supply. Press red pressure-relief button (if present).
    2. Unscrew housing. Remove large o-ring, wipe clean and set aside.
    3. Discard used filter cartridge. Wash housing with dish soap and warm water using a nonabrasive sponge or cloth. Rinse thoroughly. Fill 1/3 with water. Add about 1 tablespoon of bleach and scrub to disinfect. Rinse thoroughly.
    4. Lubricate o-ring with clean silicone grease. Change o-ring if any damage cuts or degradation are present. Insert o-ring in groove.
    5. Insert new filter cartridge.
    6. Screw housing onto the cap and hand-tighten. Do not over tighten. Make sure cap standpipe slips into cartridge.
    7. Turn on water supply. Press pressure-relief button (if present). Check for leaks before leaving installation.
    warning_amber Contaminants Reduced
  • Dirt Sand Sediment
  • Sand
  • Sediment
    • filter_alt Filter Life
    Filter Life (gallons): 24000
    Filter Life (months): 6 months
    verified_user Warranty Info
    Warranty Guarantee: Unconditional Guarantee for Life of the Product

    The Pentek R30-20BB comparable by Tier1 is a 20 x 4.5 inch whole house sediment water filter by Tier1 for residential applications that require reduction of dirt, sand, and sediment. Pleated Polyester filter media headlines this 30 micron sediment filter that will meet your filtering challenges head on. Ships same day


    TIER1-R30-20BB   is comparable with the following part number(s)

    • PENTEK-R30-20BB
    • 155430-88
    • EF30-20FPVXDVP
    • AMERICAN PLUMBER R3020BB
    • TIER1-R30-20BB

    TIER1-R30-20BB   fits the following model number(s)

    • AQUAPURE-AP101T
    • WHIRLPOOL-WHKF-DWHBB
