    Tier1

    TIER1-P20-20

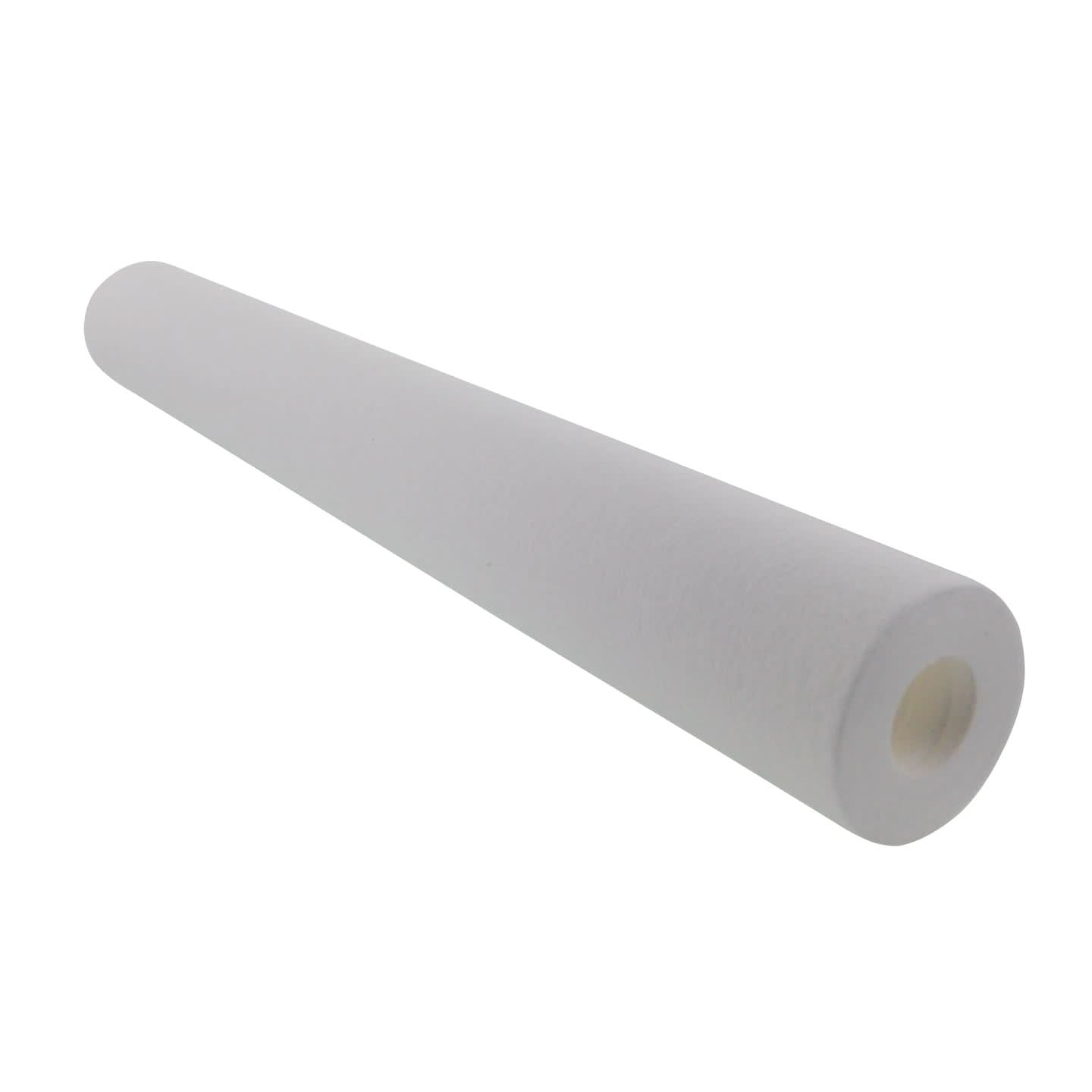

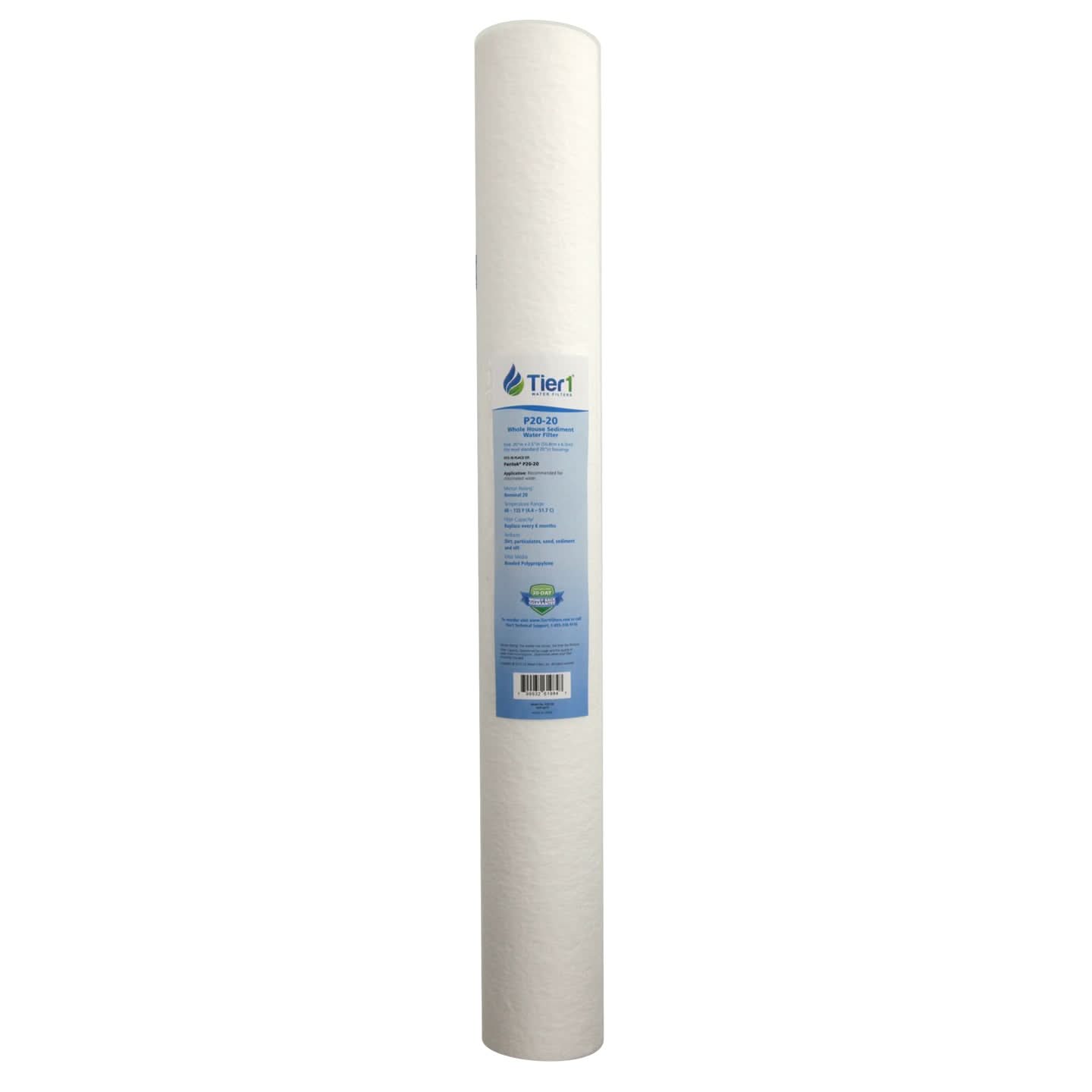

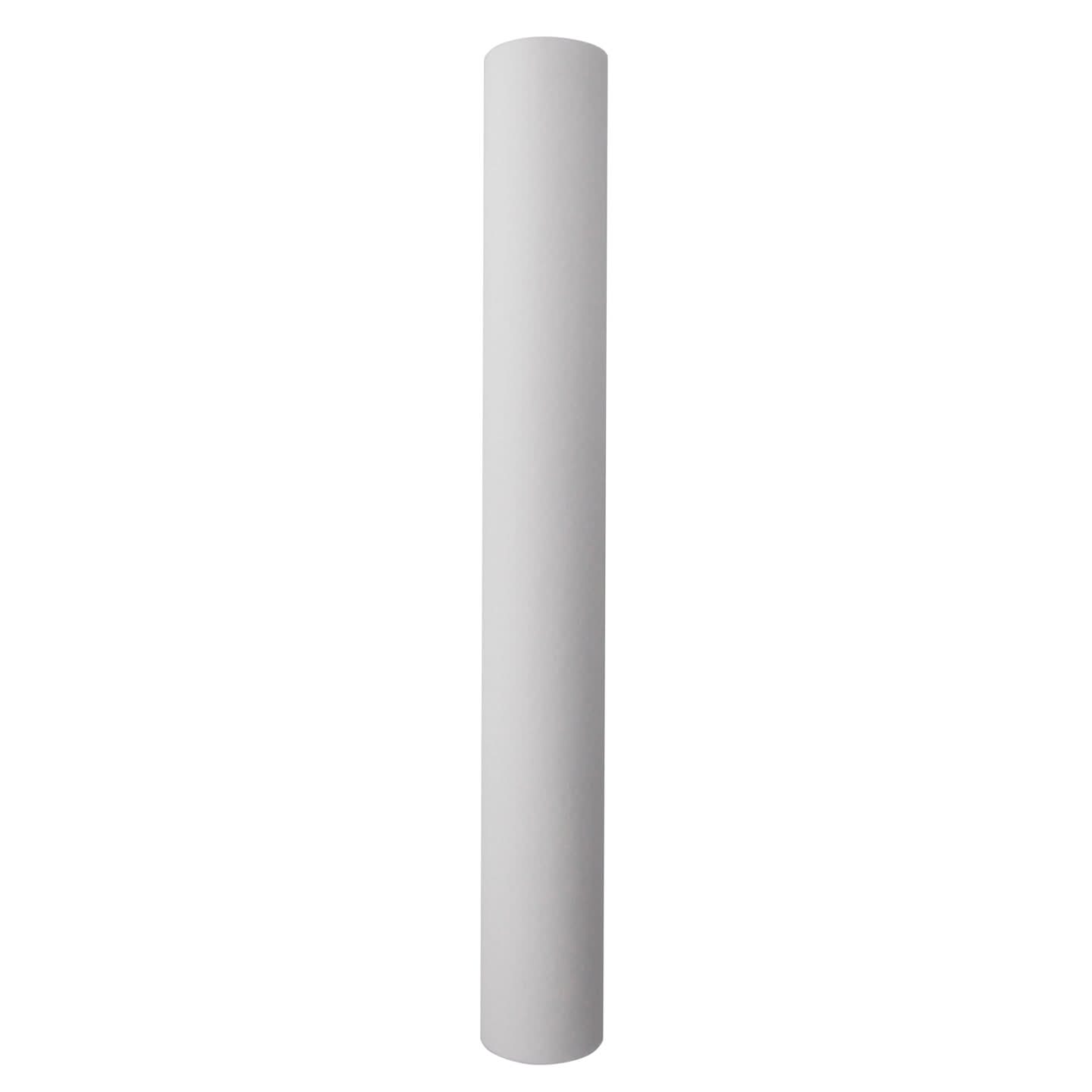

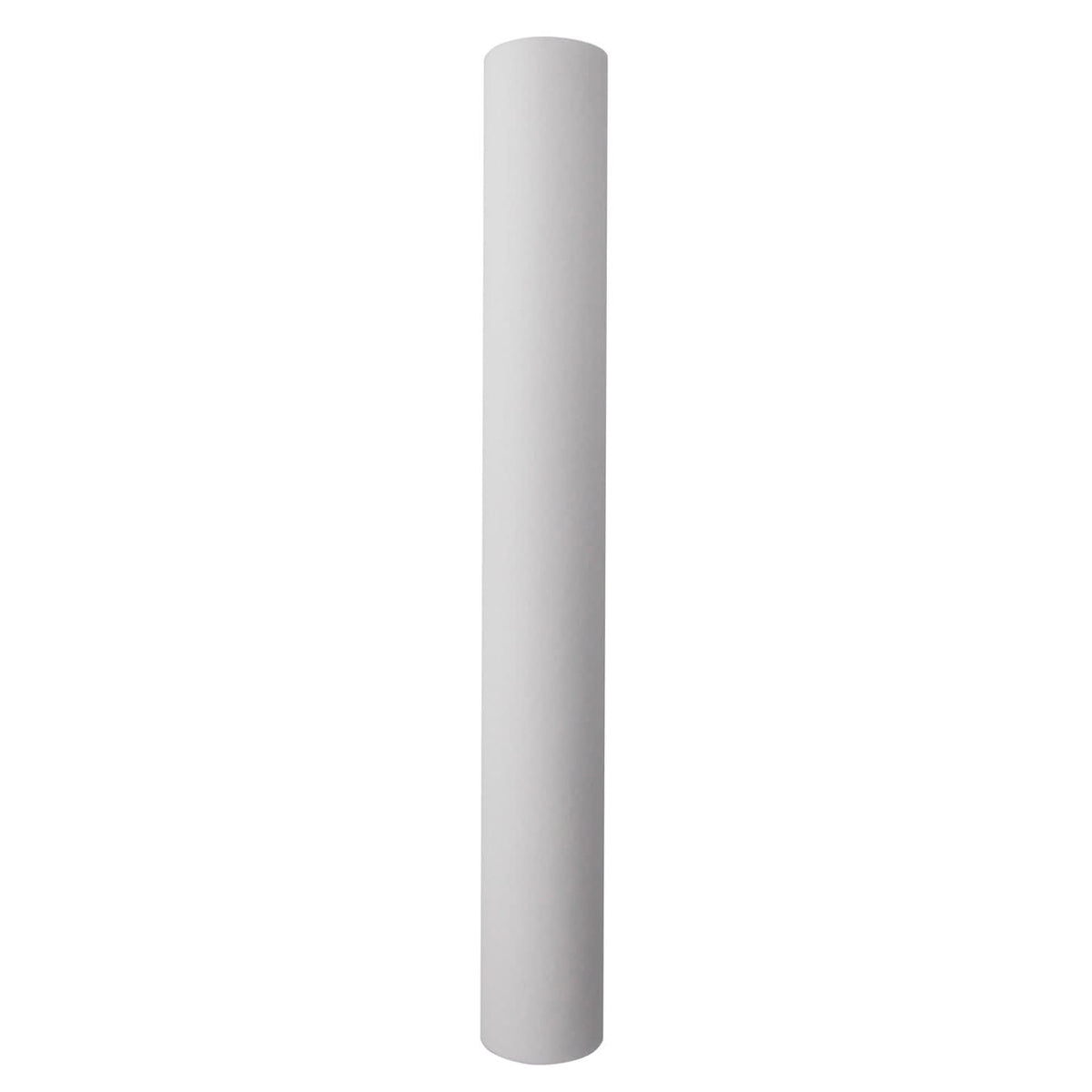

    20 X 2.5 Spun Wound Polypropylene Replacement Filter by Tier1 (20 micron)

    • Filters contaminants down to 20 microns

    • Tough on water impurities, but easy on your wallet

    format_list_bulleted Features & Specs
    Package Qty: 1
    Manufacturer: Tier1
    Manufacturer's Id: P20-20
    UPC: 799932619847
    Actual Size (in): 20 inches (length) x 2 1/2 inches (outside diameter)
    Media: Spun Wound Polypropylene
    Primary Filter Media: Polypropylene
    Operating Temperature (°F): 40 - 125
    Operating Temperature (°C): 4.4 - 51.7
    Warranty Guarantee: Unconditional Product Guarantee for Life of the Product
    Brand: Tier1
    Advertised Size: 20 x 2-1/2
    Length (in): 20 in
    Outside Diameter (in): 2.5 in
    Media Type: Sediment Filter
    Country of Origin: China
    Micron Rating Nominal: 20
    description Instructions
    1. Turn off water supply. Press red pressure-relief button (if present).
    2. Unscrew housing. Remove large o-ring, wipe clean and set aside.
    3. Discard used filter cartridge. Wash housing with dish soap and warm water using a nonabrasive sponge or cloth. Rinse thoroughly. Fill 1/3 with water. Add about 1 tablespoon of bleach and scrub to disinfect. Rinse thoroughly.
    4. Lubricate o-ring with clean silicone grease. Change o-ring if any damage cuts or degradation are present. Insert o-ring in groove.
    5. Insert new filter cartridge.
    6. Screw housing onto the cap and hand-tighten. Do not over tighten. Make sure cap standpipe slips into cartridge.
    7. Turn on water supply. Press pressure-relief button (if present). Check for leaks before leaving installation.
    warning_amber Contaminants Reduced
  • Dirt Sand Sediment
  • Particulates
  • Sand
  • Sediment
  • Silt
  • filter_alt Filter Life
    Filter Life (months): 6 months
    verified_user Warranty Info
    Warranty Guarantee: Unconditional Product Guarantee for Life of the Product

    The Pentek PS20-20C Comparable Whole House Sediment Water Filter by Tier1 is ideal for applications requiring the filtration of contaminants down to 20 microns. The Tier1 P20-20 Sediment Water Filter measures 20-inch x 2.5-inch, making it the perfect replacement for numerous settings. Installation is quick and easy, so filter changes are a breeze. Let the Tier1 P20-20 start working for you right away. Order today!


    TIER1-P20-20   is comparable with the following part number(s)

    • P20-20
    • P2020
    • 1193045
    • 93045
    • PX20-20
    • VX25-20
    • PENTEK-P20-20
    • 1193045
    • PX20-20
    • P2020
    • 93045
    • VX25-20

    TIER1-P20-20   fits the following model number(s)

    • FITS STANDARD 20-INCH FILTER HOUSINGS INCLUDING THE PENTEK-150166
