USWF-4CR1 Rack Mounted Whole House Ultraviolet Light Disinfection System 8 GPM

verified_user Warranty Info

Warranty Guarantee: UV CHAMBER - Ten (10) year Limited Warranty | CONTROLLER - Three (3) year Limited Warranty | UV LAMPS/QUARTZ SLEEVES - One (1) year Limited Warranty

USWF Water Treatment

USWF-4CR1

USWF-4CR1 Rack Mounted Whole House Ultraviolet Light Disinfection System 8 GPM

.price-ui--loading { display: block !important; opacity: 1 !important; }

$549.07

Reliable, economical, and chemical-free way to control microbiological contaminants including E.coli, Cryptosporidium and Giardia lamblia
Splash-proof controller with a fully potted ballast to eliminates virtually all common water damage issues
Long lasting 9,000 hour lamp life provides continuous disinfection up to 8 GPM @ 30 mJ/cmÂ²
Manufacturer Limited Warranty: UV CHAMBER - Ten (10) years | CONTROLLER - Three (3) years | UV LAMPS/QUARTZ SLEEVES - One (1) year

format_list_bulleted Features & Specs

Package Qty: 1

Manufacturer: USWF

Manufacturer's Id: USWF-4CR1

Actual Size (in): 21.25 inch (Length) x 21 inch (Width) x 12 inch (Depth)

Media: Ultraviolet Light

Operating Temperature (°F): 36 - 104

Operating Temperature (°C): 2.2 - 40

Warranty Guarantee: UV CHAMBER - Ten (10) year Limited Warranty | CONTROLLER - Three (3) year Limited Warranty | UV LAMPS/QUARTZ SLEEVES - One (1) year Limited Warranty

Brand: USWF Water Treatment

Fitting Size (in): 1 in

Materials of Construction: 316 L Stainless Steel

Power Requirements: 23 watts ( 20 watts lamp)

Fitting Type: MNPT

Flow Rate (gpm): 8.0

Includes: UV Chamber, Controller, Lamp, Quartz Sleeve, Housing, Wrench, and Prefilter

filter_alt Filter Life

Filter Life (months): 12 months

verified_user Warranty Info

Warranty Guarantee: UV CHAMBER - Ten (10) year Limited Warranty | CONTROLLER - Three (3) year Limited Warranty | UV LAMPS/QUARTZ SLEEVES - One (1) year Limited Warranty

help Product Details

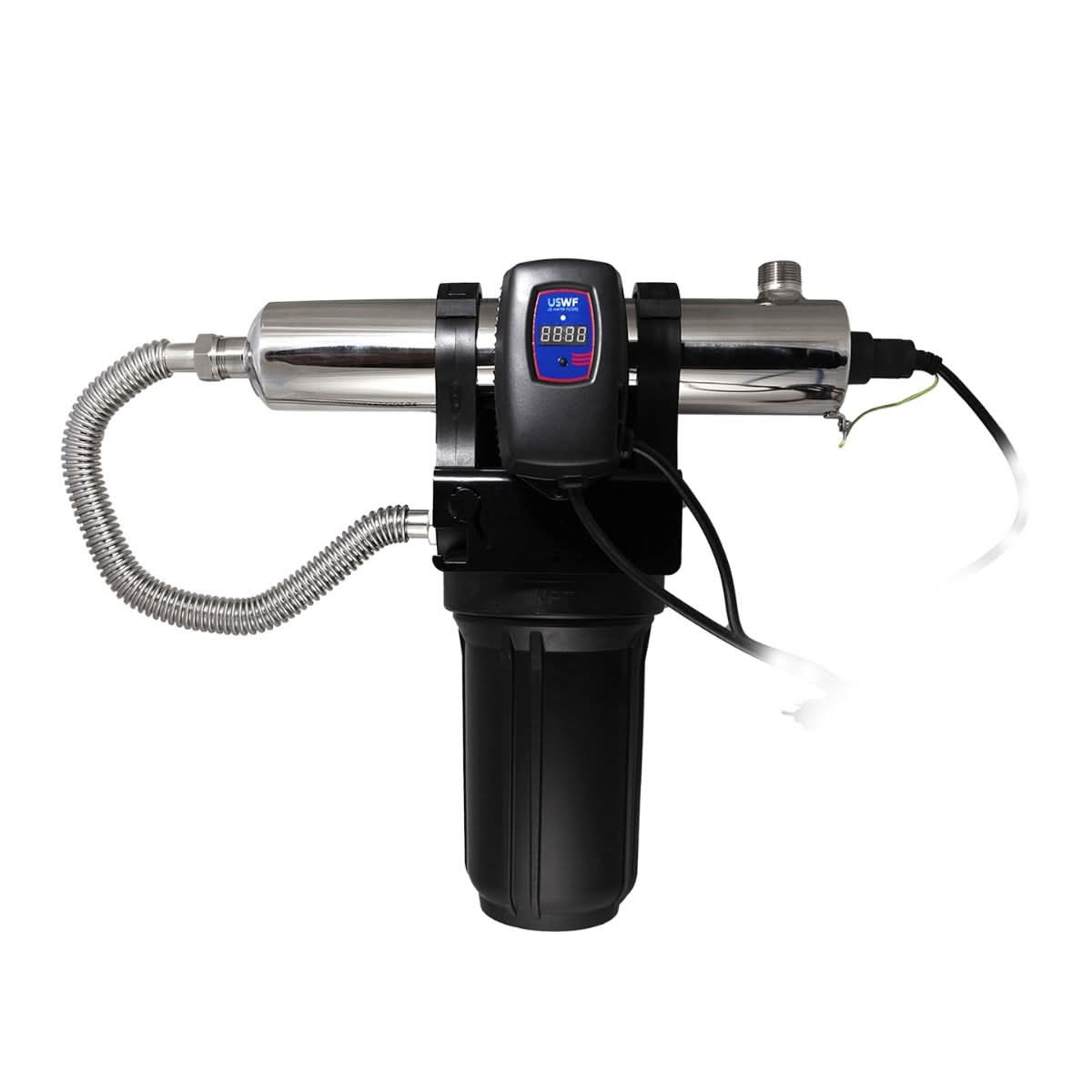

The USWF-4CR1 Contractor Series UV disinfection system is a reliable, economical, and chemical-free way to control microbiological contaminants including E.coli, Cryptosporidium and Giardia lamblia in residential and light commercial applications up to 8 GPM.

This system combines the power of UV disinfection with an integrated 10"x4.5" sediment prefilter. Because UV light only travels in a straight line any shadow or obstruction will reduce its efficiency. The integrated sediment prefilter ensures suspended particles like silt and sand that can block the UV light are removed for optimal system performance.

Designed with ease of operation in mind the system uses a bayonet style UV lamp connector which allows for quick lamp changes without tools, and the prefilter housing has a built-in drain plug to make changing the filter and quartz sleeve a breeze.

This UV system utilizes a low pressure, standard output UV lamp rated for 9,000 hours of continuous output, housed in a commercial grade axial flow UV chamber made from 316L grade stainless steel which offers better durability and corrosion resistance compared to the 304 grade stainless steel chambers used by many other brands.

The controllers for the USWF Contractor Series provide both visual and audio lamp out indicators in a splash-proof case. The ballast in the controller is also fully potted to further protect against possible water damage and to improve heat dissipation.

By purchasing a USWF-4CR1 you're not only getting a high quality UV disinfection system, but also peace of mind that the water in your home will have an extra level of protection.

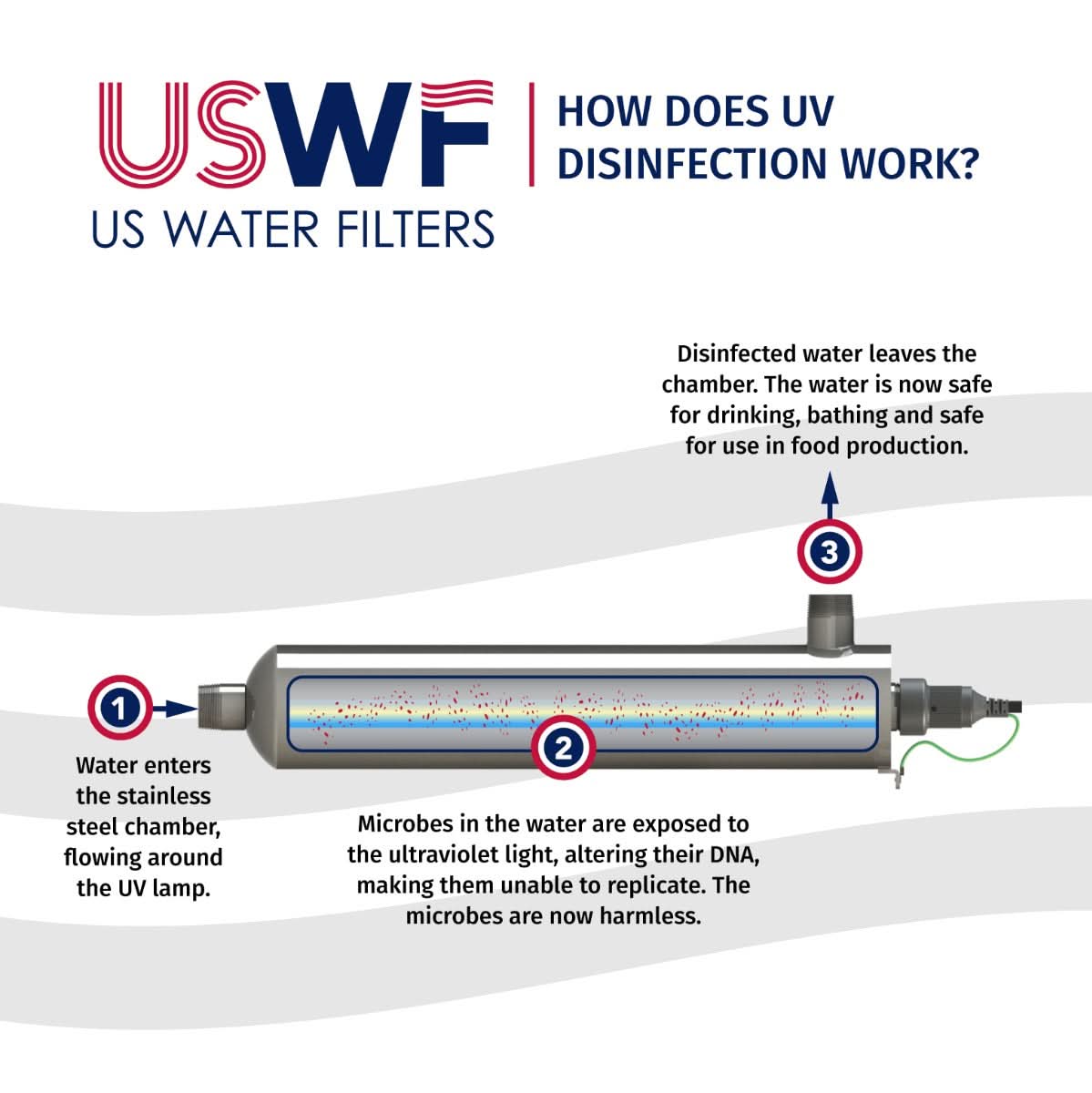

How Does UV Disinfection Work?

Ultraviolet light water treatment systems utilize special UV lamps that emit UV light at a wavelength that damages microorganisms cellular function neutralizing the microorganisms DNA and their ability to function and reproduce. Because the microorganisms cannot replicate they cannot infect other organisms they come in contact with. This disinfects the water without the need for chemicals which need to be precisely administered and carefully monitored. Once installed the UV lamp runs 24/7 constantly disinfecting the water that travels through it and only requires minimal annual maintenance to keep running.

Because UV light only travels in a straight line any shadow or obstruction will reduce its efficiency. This means it is important to filter your water before UV treatment to make sure suspended particles like silt and sand are removed. Hardness minerals can also build up on the quartz sleeve which may require cleaning during lamp changes, however if the incoming water is hard enough a water softener is also recommended for pretreatment to reduce this buildup.

Naturally sourced water should be professionally tested and treated before it is used for drinking, bathing, filling swimming and paddling pools, food preparation or cooking. A number of water treatment systems can be used to remove microbiological contaminants that may cause illness. Ultraviolet light disinfection is an effective, reliable, environmentally friendly and chemical free water treatment system that can be used to disinfect water from most forms of microbiological contamination.

USWF-4CR1 Rack Mounted Whole House Ultraviolet Light Disinfection System 8 GPM

How Does UV Disinfection Work?
