    USWF-CB5-2025

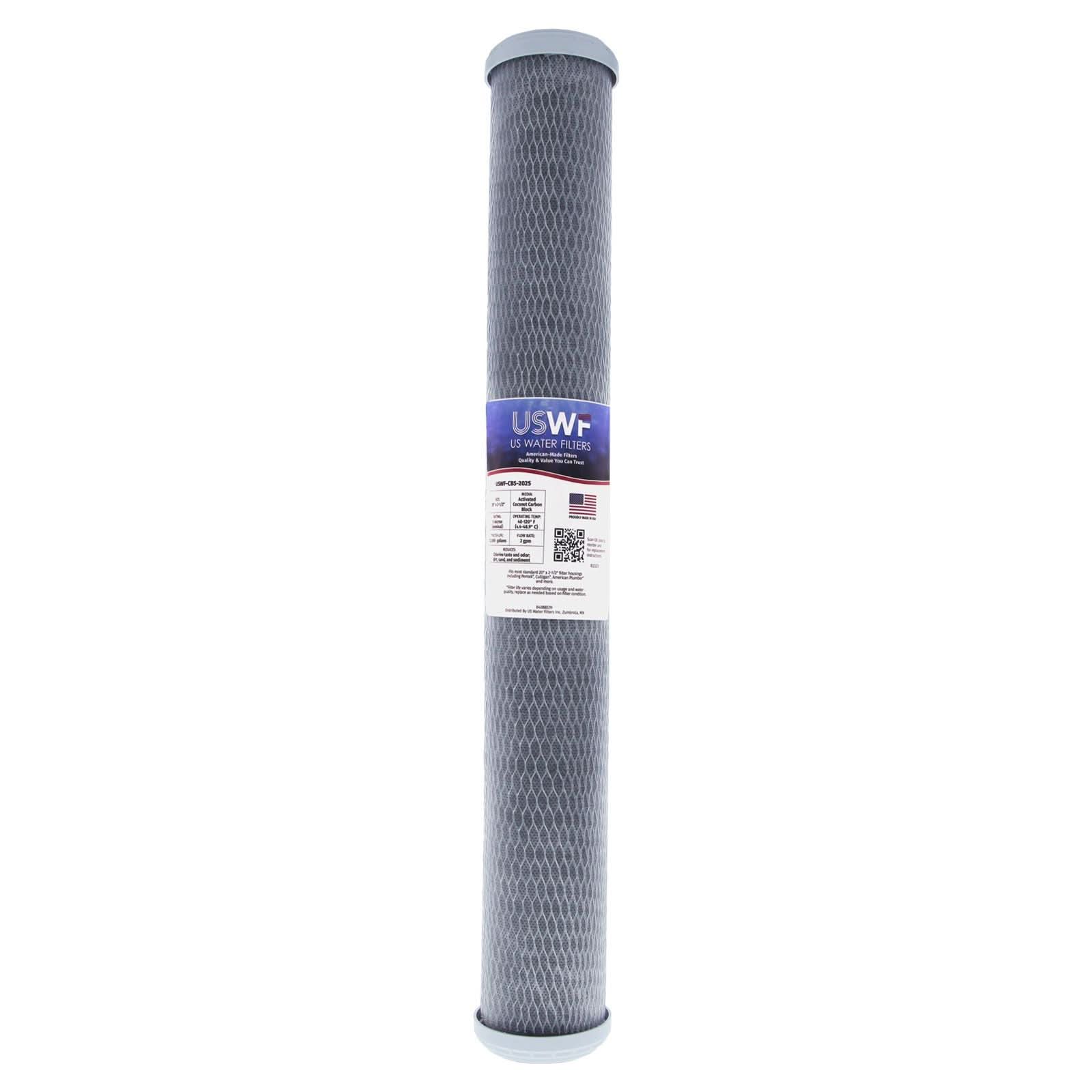

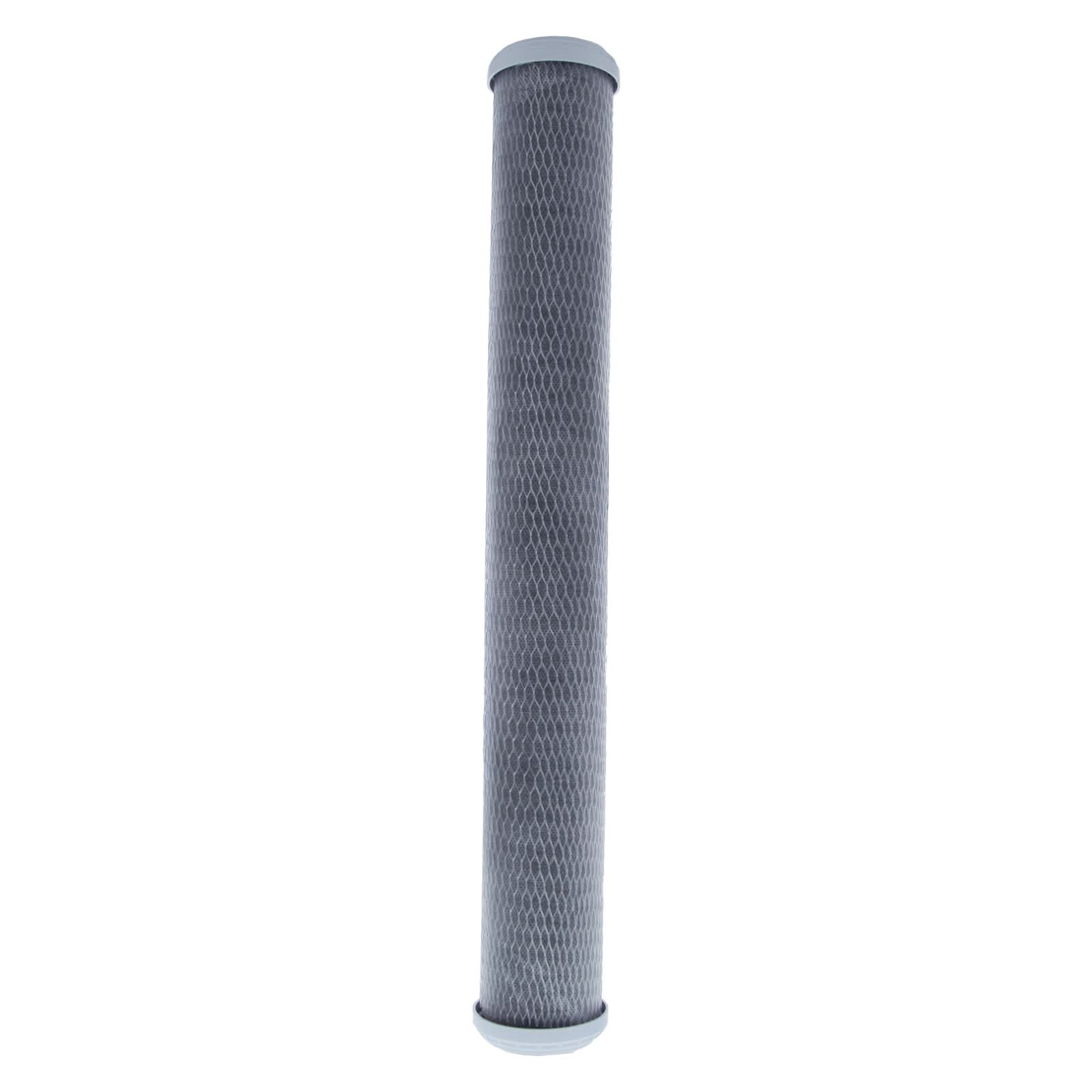

    Coconut Carbon Block Filter by USWF 5 Micron 20"x2.5"

    • Proudly manufactured in America supporting American workers and ensuring a high quality product.

    • Extruded carbon block technology provides superior filtration and reduces carbon fine compared to GAC filters.

    • Made from coconut shell carbon, a renewable, and ecologically sustainable material with superior porosity and filtration performance compared to other carbon sources.

    • Fits most standard 20" x 2 1/2" filter housings including Pentek, Culligan, American Plumber and more.

    format_list_bulleted Features & Specs
    Package Qty: 1
    Manufacturer's Id: CB5-2025
    Actual Size (in): 20 inches (length) x 2 1/2 inches (outside diameter)
    Media: Coconut Carbon
    Primary Filter Media: Activated Carbon Block
    Operating Temperature (°F): 40 - 120
    Brand: USWF
    Advertised Size: 20 x 2-1/2
    Length (in): 20 in
    Outside Diameter (in): 4.5 in
    Maximum Temperature (f): 120
    Media Type: Carbon Filter
    Country of Origin: United States
    Micron Rating Nominal: 5
    Flow Rate (gpm): 2.0
    description Instructions
    1. Turn off water supply and release pressure in the filter housing. (Press red pressure-relief button on housing if present.)
    2. Unscrew filter housing sump. (Use filter wrench if nessecary.)
    3. Discard used filter cartridge. Remove the sump o-ring, wipe clean and set aside.
    4. Wash housing with dish soap and warm water using a nonabrasive sponge or cloth. Rinse thoroughly
    5. If unpleasent odor is present disinfect filter housing. Fill 1/3 with water. Add about 1 tablespoon of bleach and scrub to disinfect. Rinse thoroughly
    6. Lubricate o-ring with clean silicone grease and place back onto the sump housing. (Check for cracks or imperfections on the o-ring while lubicating, and replace o-ring if damaged.)
    7. Insert new filter cartridge ensuring that it is seated properly in the sump housing.
    8. Screw the sump housing back onto the cap and hand-tighten. Do not use the filter wrench to prevent over tightening.
    9. Turn on the water supply and check for leaks before leaving the installation.
    10. Flush out any air from the filter housing. (Using the red pressure-relief button, or a nearby down-stream faucet.)
    warning_amber Contaminants Reduced
  • Bad Taste And Odor
  • Chlorine
  • Dirt Sand Sediment
  • Sediment
  • Vocs
  • filter_alt Filter Life
    Filter Life (gallons): 16000
    Filter Life (months): 6 months
    warning

    Prop65 warning applies to products that contain carbon media. Click here for more details

    WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information go to www.p65warnings.ca.gov


    USWF-CB5-2025 is a 5 micron 20"x2.5" carbon block chlorine and sediment reduction filter that is proudly manufactured in the USA. It is constructed of an extruded coconut carbon block covered in a polypropylene wrap.
    Activated carbon block filters are excellent filters which improve on the characteristics of GAC (granular activated carbon) filters in a number of ways. Carbon blocks are pressed into a single piece of carbon with a consistent density meaning the water flow is evenly distributed throughout the carbon in the filter. This prevents channeling, fluidization and carbon bypassing that can occur in traditional GAC filters. The consistent density of the carbon block also helps control flow rate and pressure drop through the filter while maintaining contact time with the carbon to ensure excellent filtration performance. Carbon block filters also typically produce less carbon fines than GAC filters, and have the added capability of capturing sediment in addition to the carbon filtration.
    USWF carbon block filters are constructed from coconut carbon. Compared to other forms of activated carbon coconut shell carbon has more surface area and a higher density of micro pores leading to an overall greater porosity. The increased porosity of coconut carbon provides increased adsorption and filtration of volatile organic contaminants which is why it is considered as one of the best materials for water filtration. Not to mention that coconut shells are considered to be the greenest most environmentally friendly sources of carbon available. It is renewable, grows year round, and doesn't harm the trees allowing for a sustainable, continuous source of high quality carbon.
    This American made filter is a compatible replacement for other popular activated carbon block filters like the Pentek EP-20, Hydronix CB-25-2005, and more.

    USWF-CB5-2025   is comparable with the following part number(s)

    • TIER1-EP5-20
    • PENTEK-EP-20
    • EP-20
    • CQE-RC-04014
    • 32-250-125-20
    • CTO2-20
    • 155529-43
    • 4PCD2
    • K00174
