Pentek R30-BB Pleated Polyester Water Filter (9-3/4-inch x 4-1/2-inch) - WaterFilters.NET

Pentek

PENTEK-R30-BB

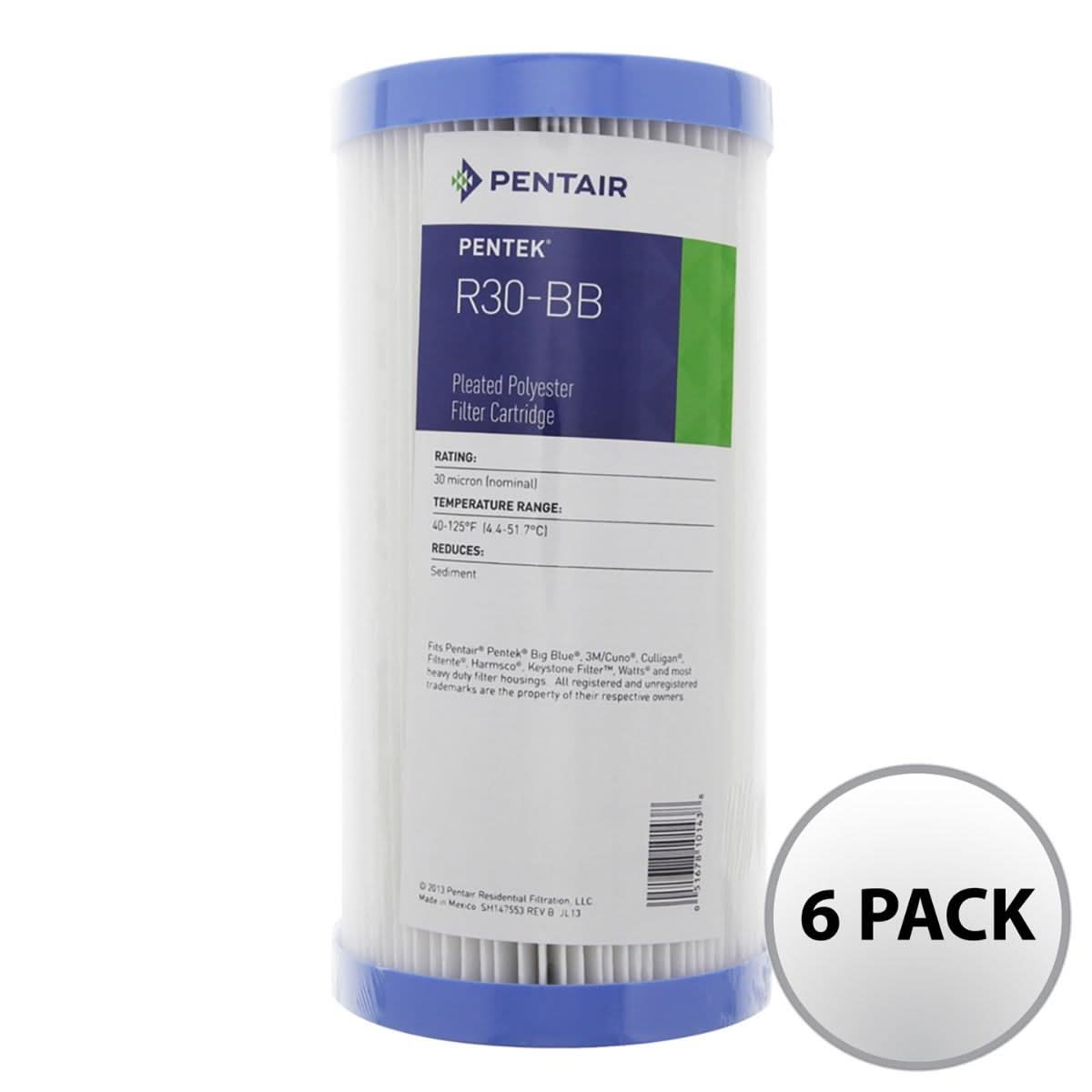

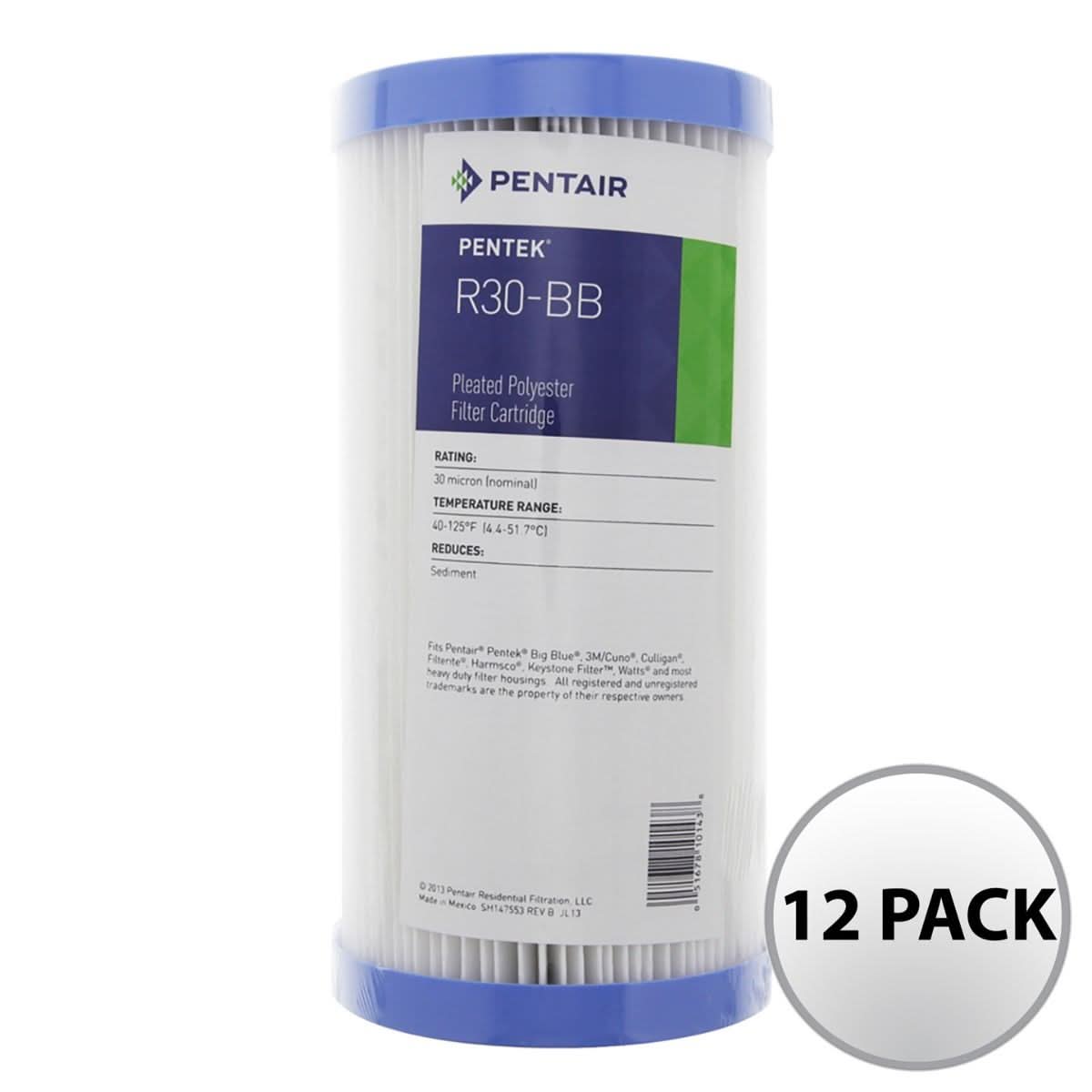

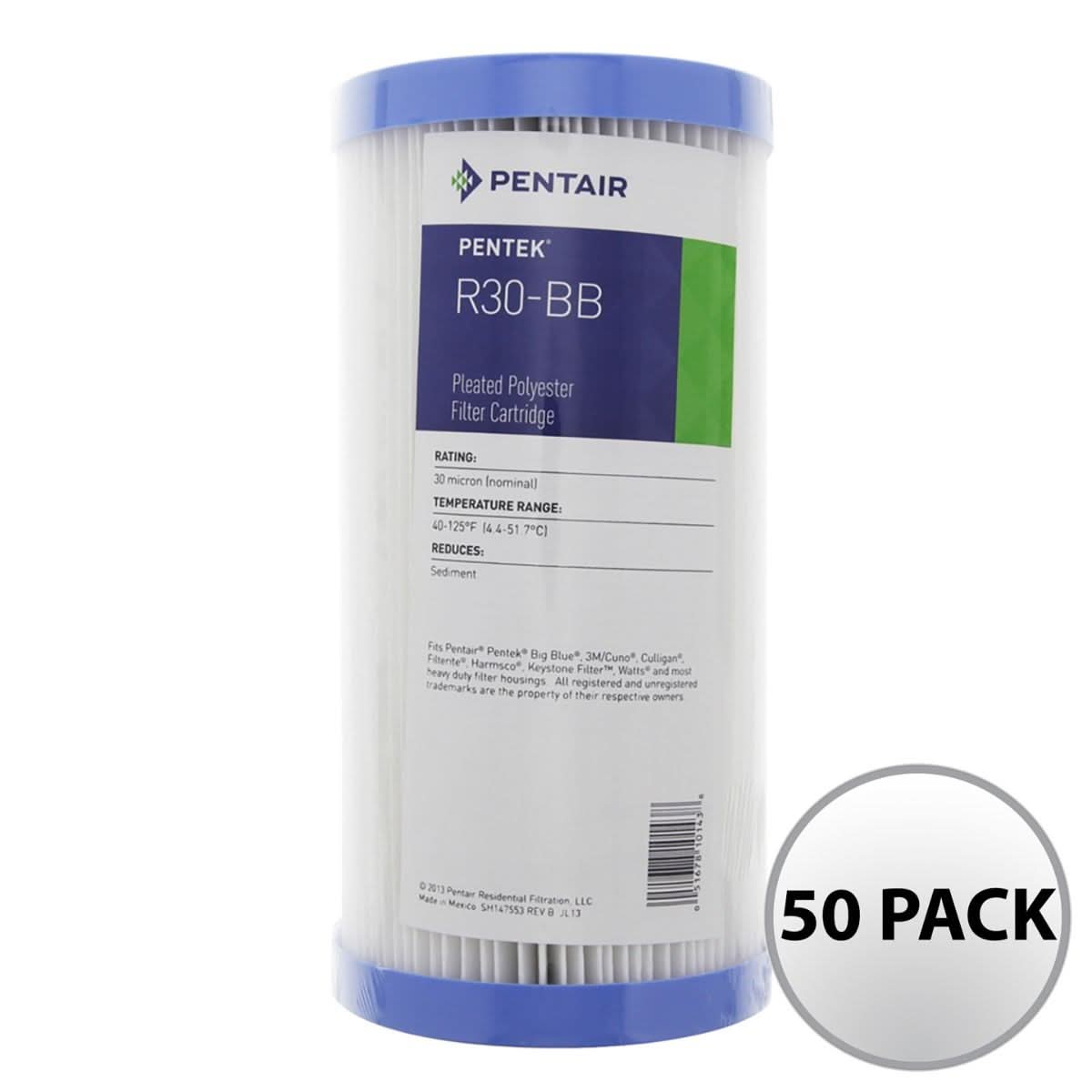

Pentek R30-BB Pleated Polyester Water Filter (9-3/4-inch x 4-1/2-inch)

$21.59

Fits most stand housings built for 10-inch x 4.5-inch filter cartridges

Simply rinse the filter clean to extend its life
Reduces contaminants down to 30 microns in size
Ideal for both municipal and or well water applications
Filter is resistant to bacterial growth and chemical wear

format_list_bulleted Features & Specs

Package Qty: 1

Manufacturer: Pentair Water

Manufacturer's Id: R30-BB

UPC: 051678101438

Actual Size (in): 9 3/4 inches (length) x 4 1/2 inches (outside diameter)

Media: Pleated Polyester

Primary Filter Media: Pleated Polyester

Operating Temperature (°F): 40 - 125

Operating Temperature (°C): 4.4 - 51.7

Brand: Pentek

Advertised Size: 10 x 4-1/2

Length (in): 9.75 in

Outside Diameter (in): 4.5 in

Width (in): 4.5 in

Materials of Construction: Core: Polypropylene, End Caps: Vinyl Plastisol, Filter Media: Non-Woven Polyester

Media Type: Sediment Filter

UPC's For Search: 10051678101435 | 051678101438

Country of Origin: Mexico

Micron Rating Nominal: 30

Flow Rate (gpm): 10.0

Includes: One 9-3/4 x 4-1/2 Inch Pentek R30-BB Pleated Polyester Water Filter

description Instructions

Turn off water supply. Press red pressure-relief button (if present).
Unscrew housing. Remove large o-ring, wipe clean and set aside.
Discard used filter cartridge. Wash housing with dish soap and warm water using a nonabrasive sponge or cloth. Rinse thoroughly. Fill 1/3 with water. Add about 1 tablespoon of bleach and scrub to disinfect. Rinse thoroughly.
Fill 1/3 with water. Add about 1 tablespoon of bleach and scrub to disinfect. Rinse thoroughly.
Lubricate o-ring with clean silicone grease. Change o-ring if any damage cuts or degradation are present. Insert o-ring in groove.
NOTE: This step is important to ensure a proper housing seal. Make certain the o-ring is seated level in the groove.
Insert new filter cartridge.
Screw housing onto the cap and hand-tighten. Do not over tighten. Make sure cap standpipe slips into cartridge.
Turn on water supply. Press pressure-relief button (if present). Check for leaks before leaving installation.

file_download Downloads

User Guide

workspace_premium Certifications

NSF/ANSI Standard 42

warning_amber Contaminants Reduced

Sediment

filter_alt Filter Life

Filter Life (months): 6 months

compare_arrows

help Product Details

Pentek R30-BB Filter Advantages
Pentek R30-BB water filters produce healthier, better-tasting drinking water. R Series filter cartridges are resistant to both bacteria and chemical attack making them suitable for a variety of residential, commercial and industrial applications. Since the cartridge has durable polyester media that is bacteria and chemical resistant the R30-BB filter can be used on chlorinated or non-chlorinated water supplies. The Pentek R30-BB filter cartridge media is pleated to maximize dirt-holding capacity and extend the time period between changes or cleaning.

Pentek R30-BB Construction Details
The Pentek R30-BB filter cartridge pleated design maximizes dirt-holding capacity. The Pentek R30-BB water filter is versatile and can be rinsed to extend the filter life. This filter is manufactured from a durable, non-woven and reusable polyester fabric that is suitable for a wide range of filtration uses. The Pentek R30-BB water filter media is pleated around a polypropylene core for added strength and the ends are immersed in a thermosetting vinyl plastisol. Embedding and sealing each end of the pleat in this fashion fuses the three components together forming a unitized end cap and gasket. The overlap seam is sonically welded to reduce internal bypass improving filtration efficiency.

Pleated Filter Media
The Pentek R30-BB uses a pleated filter design to maximize contaminant exposure to filter media. More time along the media allows for higher capture and retention of unwanted contaminants. This also allows for greater amounts of larger particles such as sediment and sand to collect within the pleats of the filter. This pleated design enhances structural stability and helps increase the performance of the filter. Pleats can be rinsed to increase the life of the filter. When staining, scratching, or obvious wear can be noticed the filter must be replaced.

NOTE: Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system.

For more information please see the related tabs above and read the Pentek R30-BB User Guide

extension Comparable Part Number

Pentek R30-BB Pleated Polyester Water Filter (9-3/4-inch x 4-1/2-inch)

PENTEK-R30-BB is comparable with the following part number(s)
